Knock Sensor Replacement

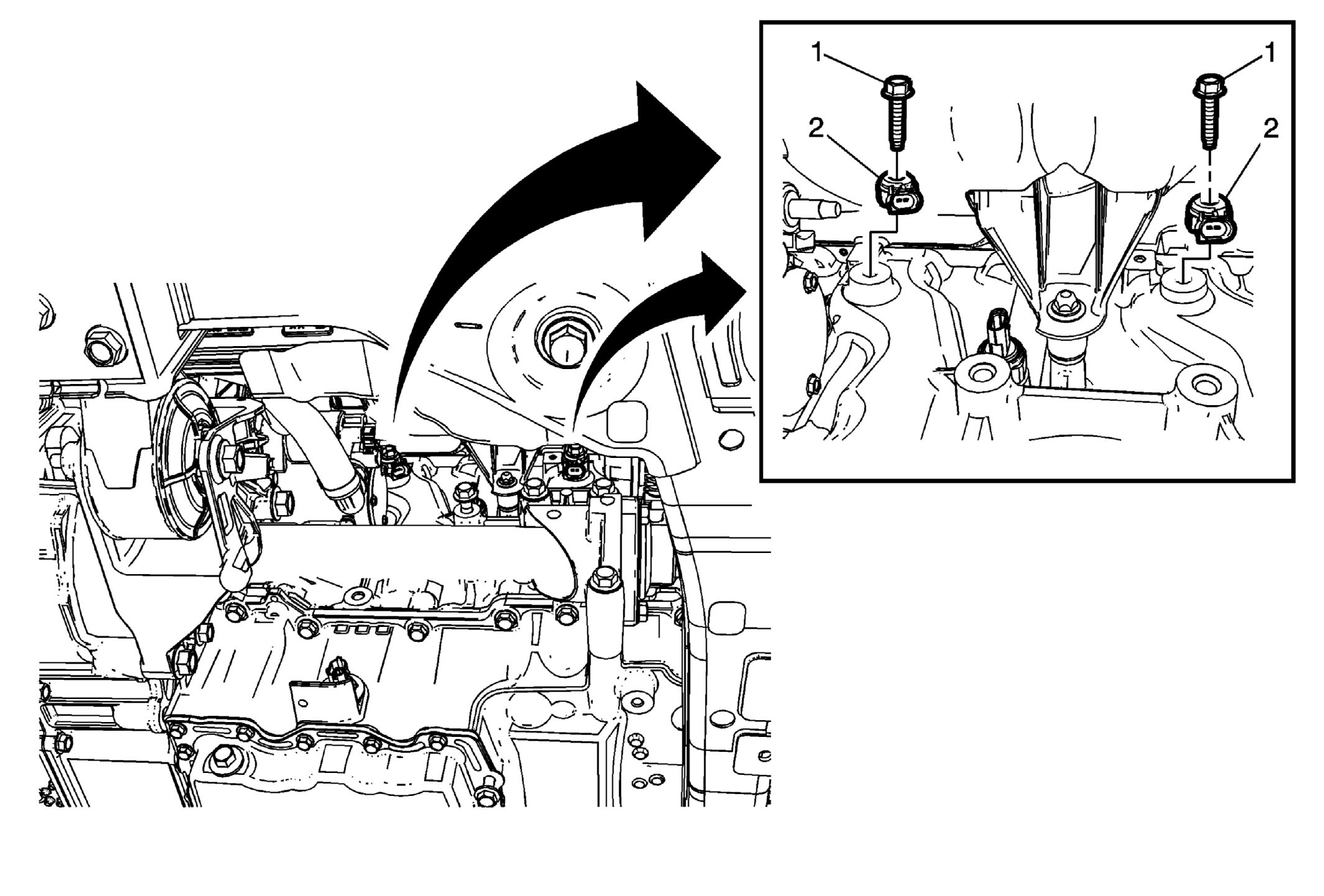

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and properly support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Knock Sensor Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Knock Sensors (Qty: 2) Procedure Disconnect the electrical wiring harness connectors from the knock sensors. |
