Window Systems Component Views

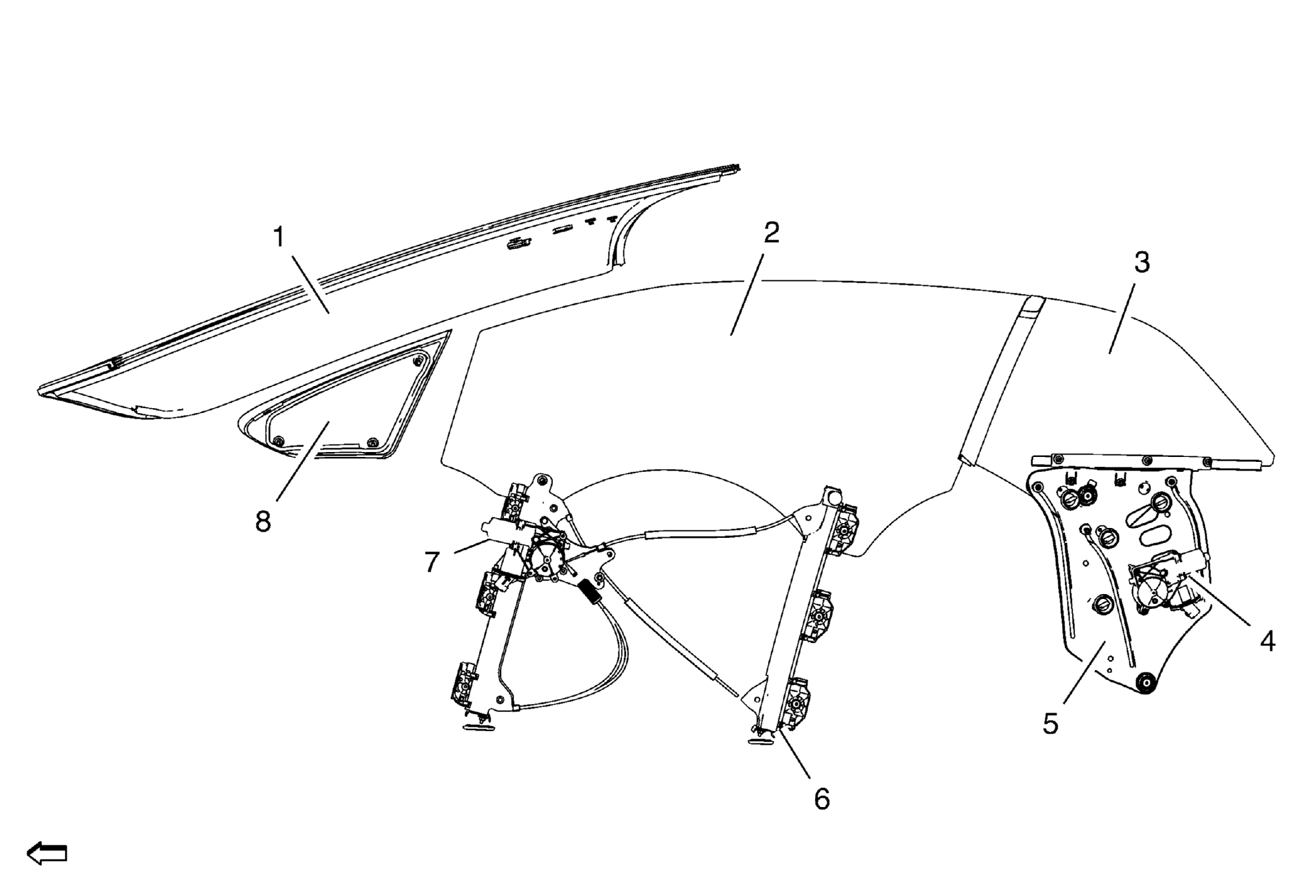

Fig 1: Window Systems
GM2966393Courtesy of GENERAL MOTORS COMPANY
Number Description Procedure
1 Windshield Windshield Replacement
2 Front Side Door Window Front Side Door Window Replacement
3 Quarter Window Quarter Window Replacement
4 Quarter Window Regulator Quarter Window Regulator Replacement
5 Quarter Window Regulator Motor Quarter Window Regulator Motor Replacement
6 Front Side Door Window Regulator Front Side Door Window Regulator Replacement
7 Front Side Door Window Regulator Motor Front Side Door Window Regulator Motor Replacement
8 Windshield Pillar Stationary Window Windshield Pillar Stationary Window Replacement
