Assemble Procedure

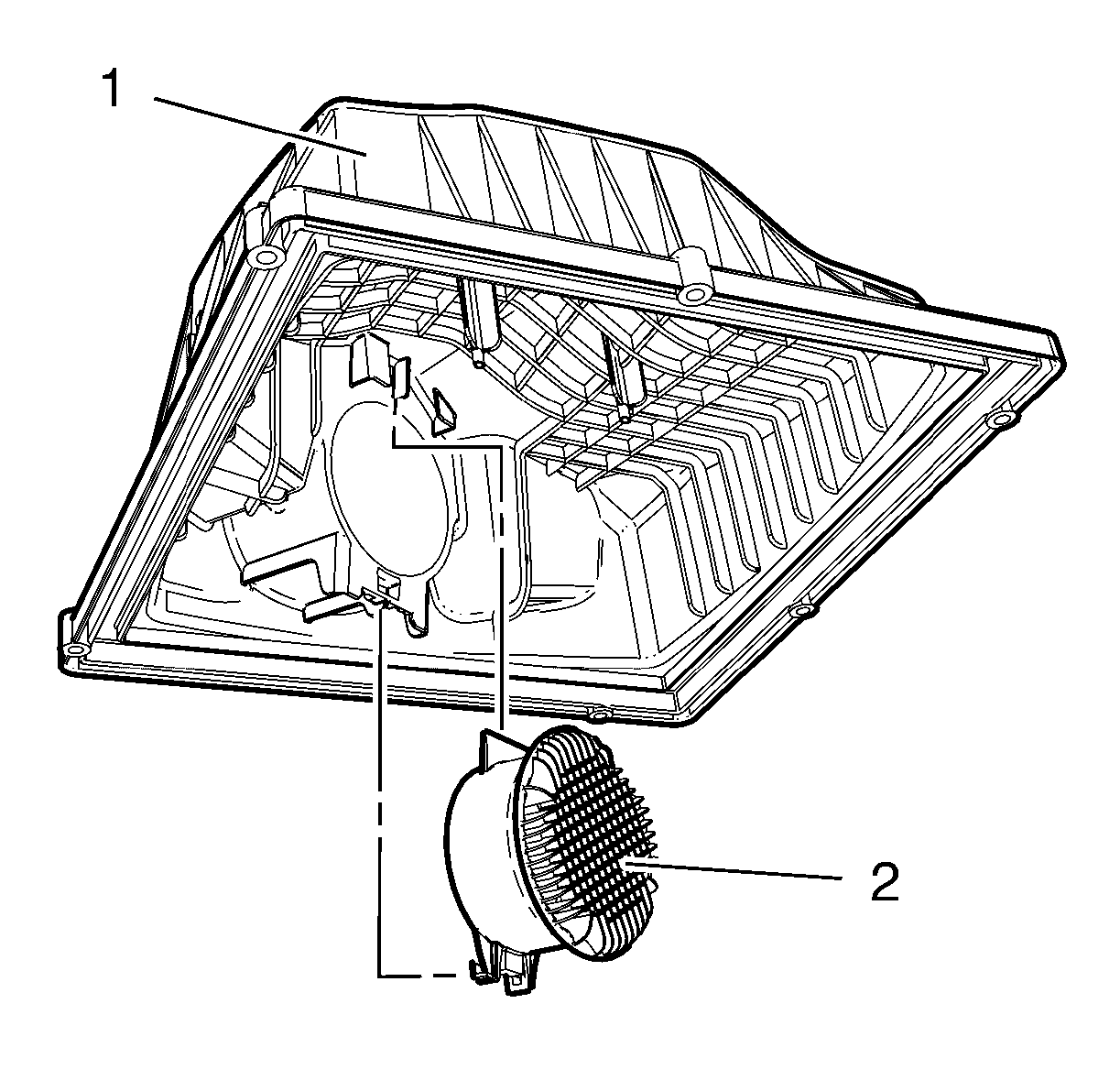

    Fig 1: Air Cleaner Upper Housing
    GM2191546Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner outlet baffle (2) to the air cleaner upper housing (1).
    2. Fig 2: Air Cleaner Element
    GM2191545Courtesy of GENERAL MOTORS COMPANY
  2. Install the air cleaner element (3).
  3. Install the air cleaner upper housing (2) to the air cleaner lower housing (4).
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the 5 air cleaner housing bolts (1) and tighten to 5 N.m (44 lb in).

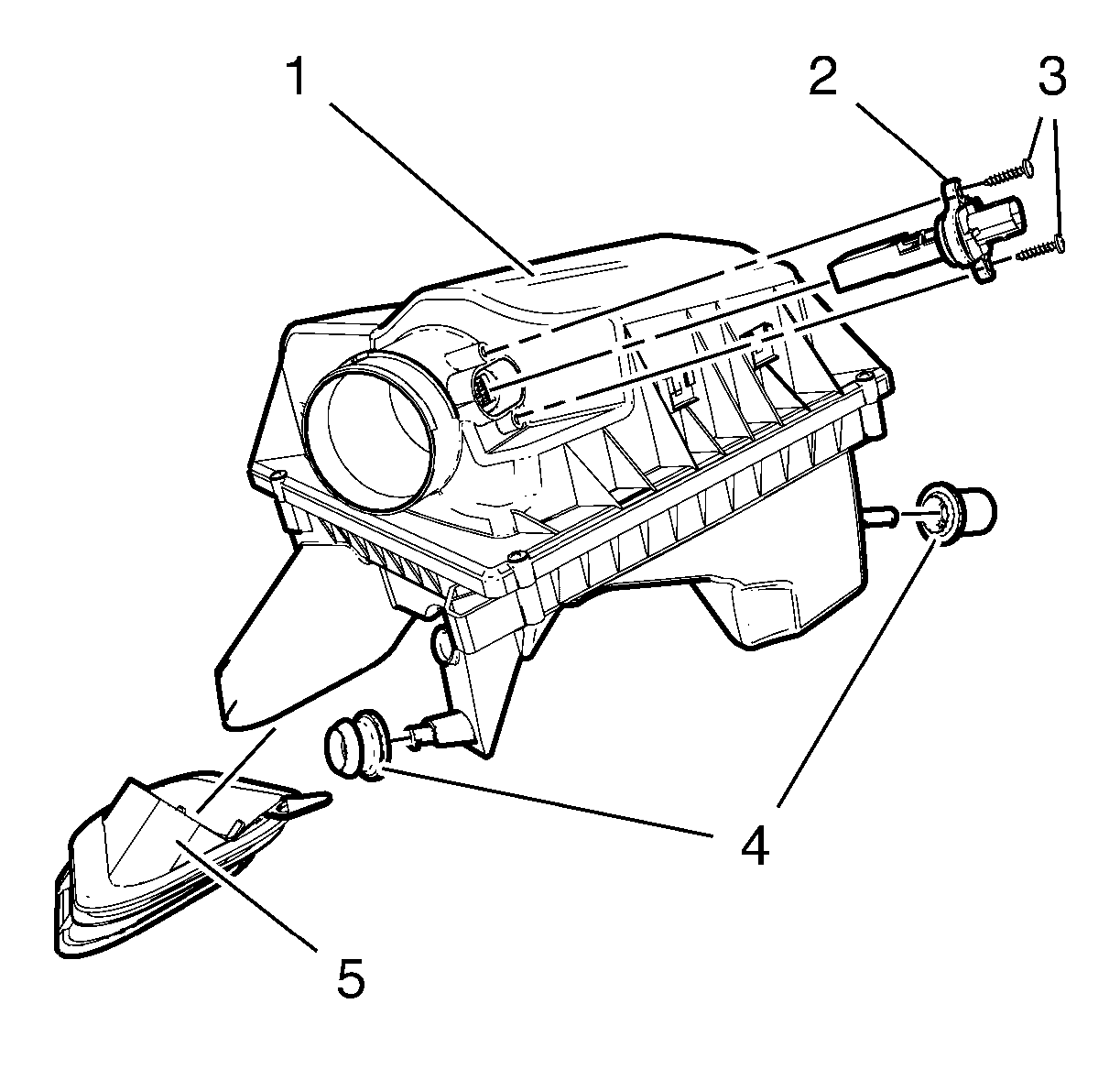

    5. Fig 3: Air Cleaner Housing And Air Cleaner Insulator
    GM2191536Courtesy of GENERAL MOTORS COMPANY
  5. Install the air cleaner insulator (5).
  6. Install the 2 air cleaner housing insulator (4).
  7. Install the mass air flow sensor (2) to the air cleaner housing (1).
  8. Install the 2 mass air flow sensor bolts (3) and tighten to 2.5 N.m (22 lb in).
