Crankshaft Position Sensor Replacement

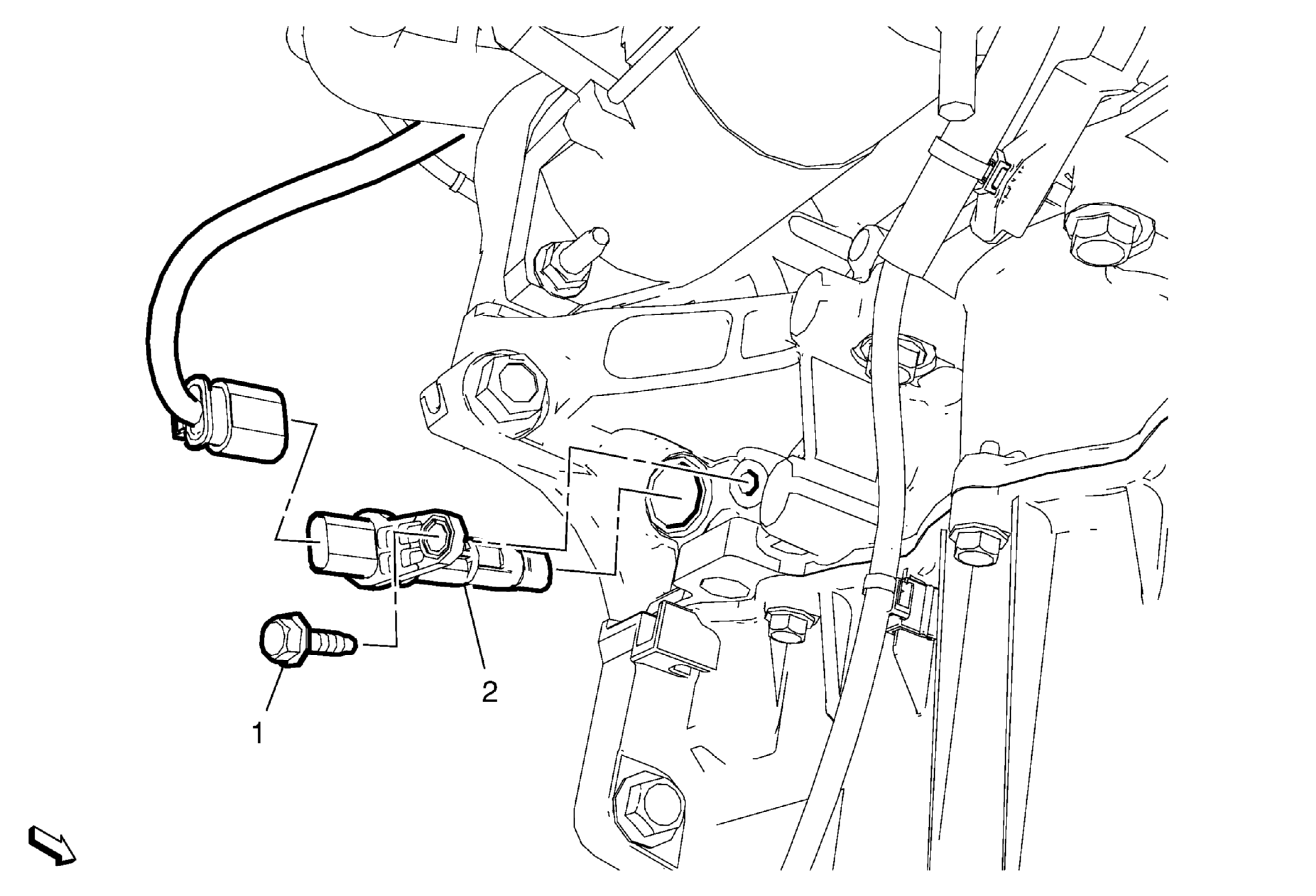

Fig 1: Crankshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine shield, if equipped. Refer to Engine Shield Replacement Disconnect the electrical connectors.
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Crankshaft Position Sensor

Callout

Component Name

Preliminary Procedures

Crankshaft Position Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Crankshaft Position Sensor
