Engine Coolant Temperature Sensor Replacement - Radiator Side

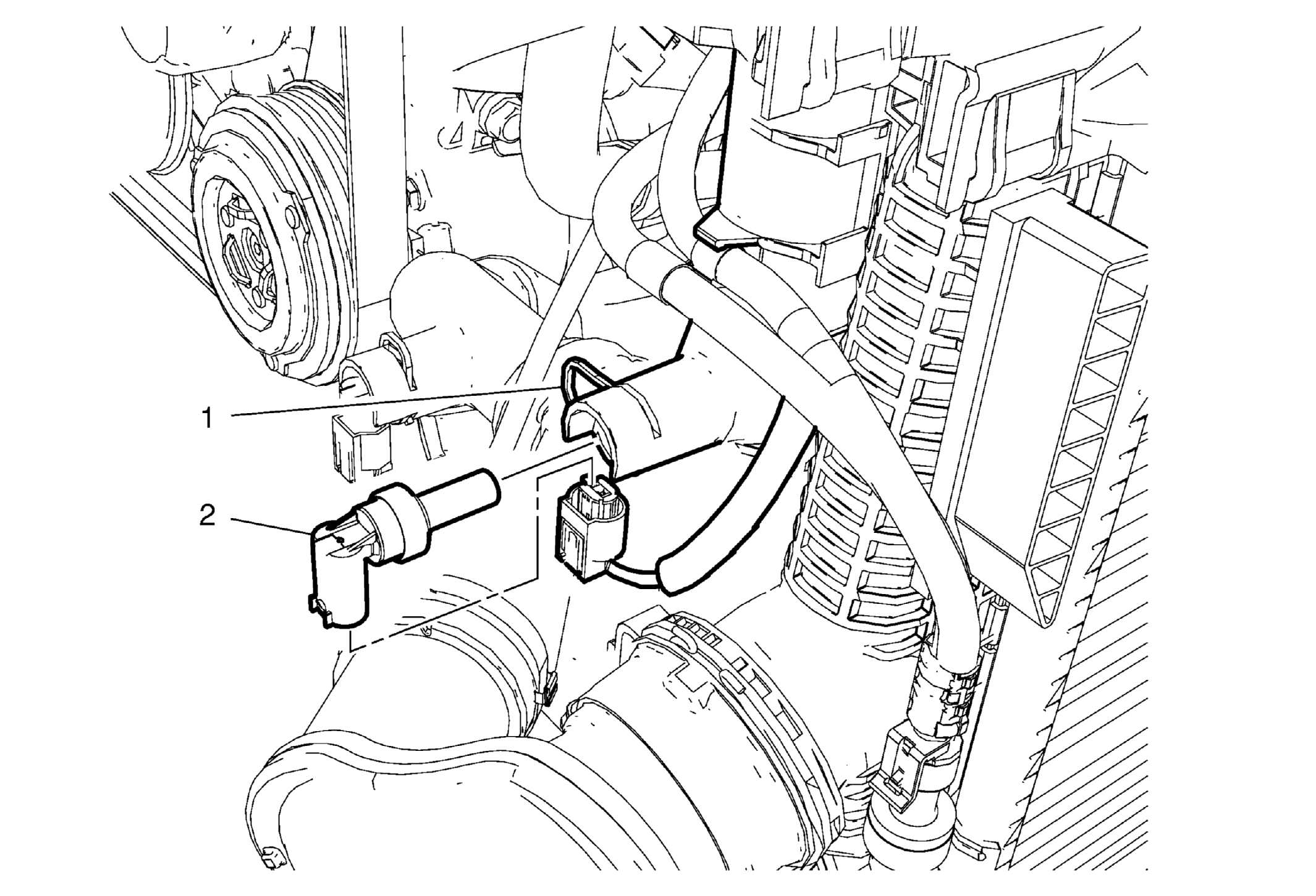

Fig 1: Engine Coolant Temperature Sensor - Radiator Side
GM2966438Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling .
  2. Remove the front pumper fascia. Refer to Front Bumper Fascia Replacement
  3. Disconnect the electrical connector.
1 Retaining Clamp
2 Engine Coolant Temperature Sensor - Radiator Side
