Removal Procedure

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  2. Remove the front bumper fascia guide. Refer to Front Bumper Fascia Guide Replacement (Inner)Front Bumper Fascia Guide Replacement (Outer) .

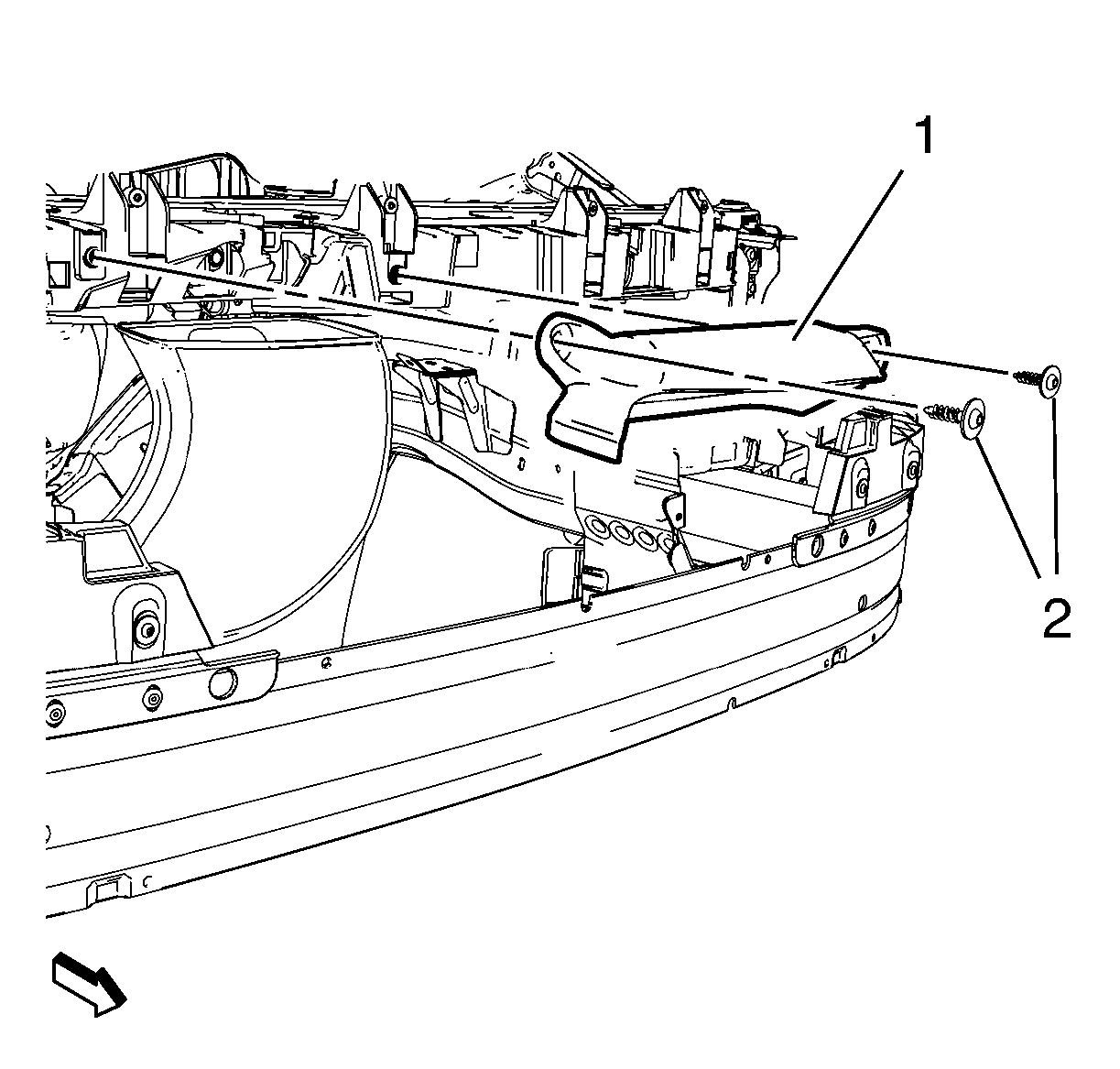

    3. Fig 1: Front Intake Air Duct Splash Shield Bolts
    GM2190228Courtesy of GENERAL MOTORS COMPANY
  3. Remove the 2 front intake air duct splash shield bolts (2).
  4. Remove the front intake air duct splash shield (1).

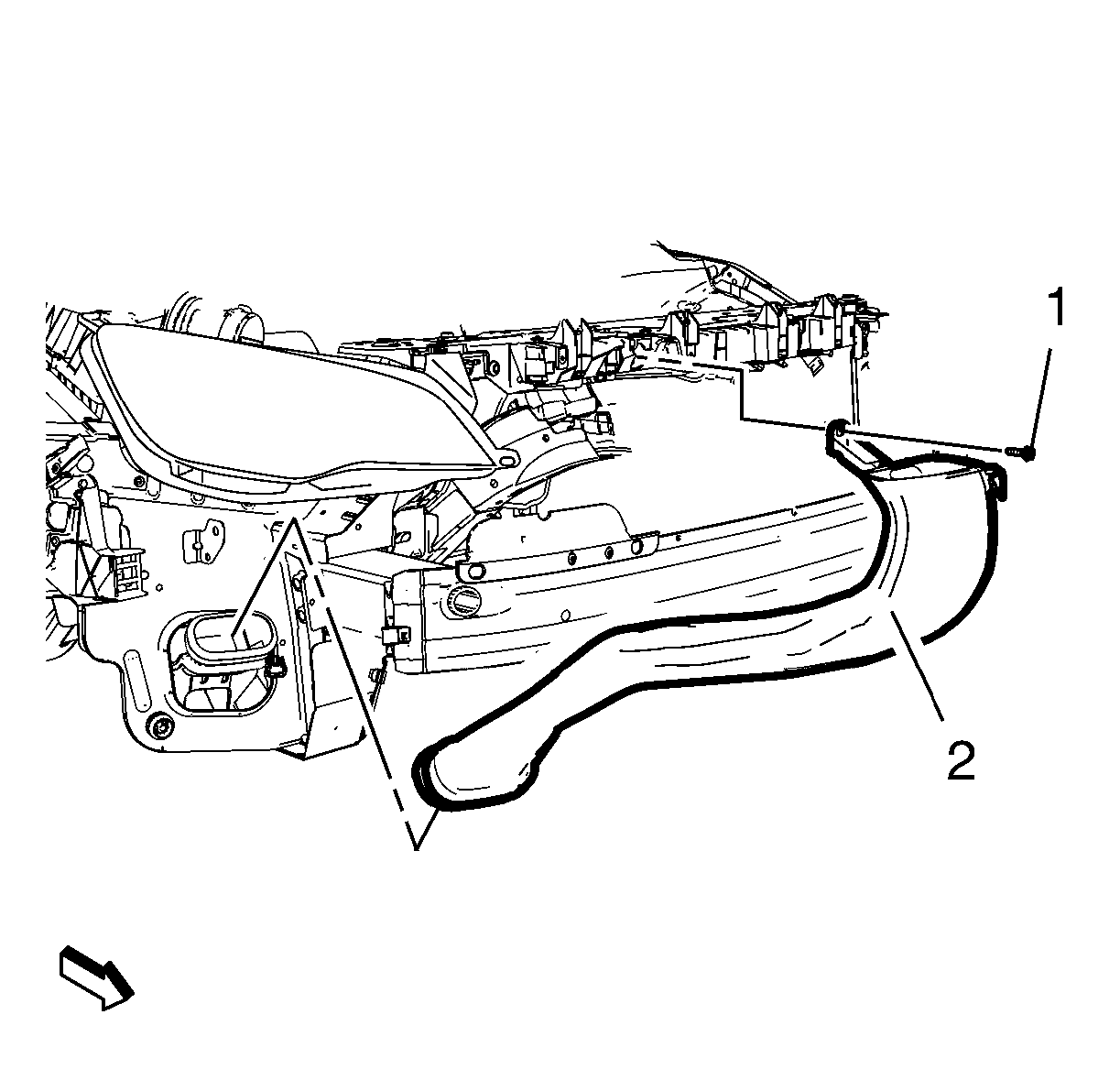

    5. Fig 2: Front Intake Air Duct Bolt
    GM2190229Courtesy of GENERAL MOTORS COMPANY
  5. Remove the front intake air duct bolt (1).
  6. Remove the front intake air duct (2).
