Intake Air Pressure and Temperature Sensor Replacement

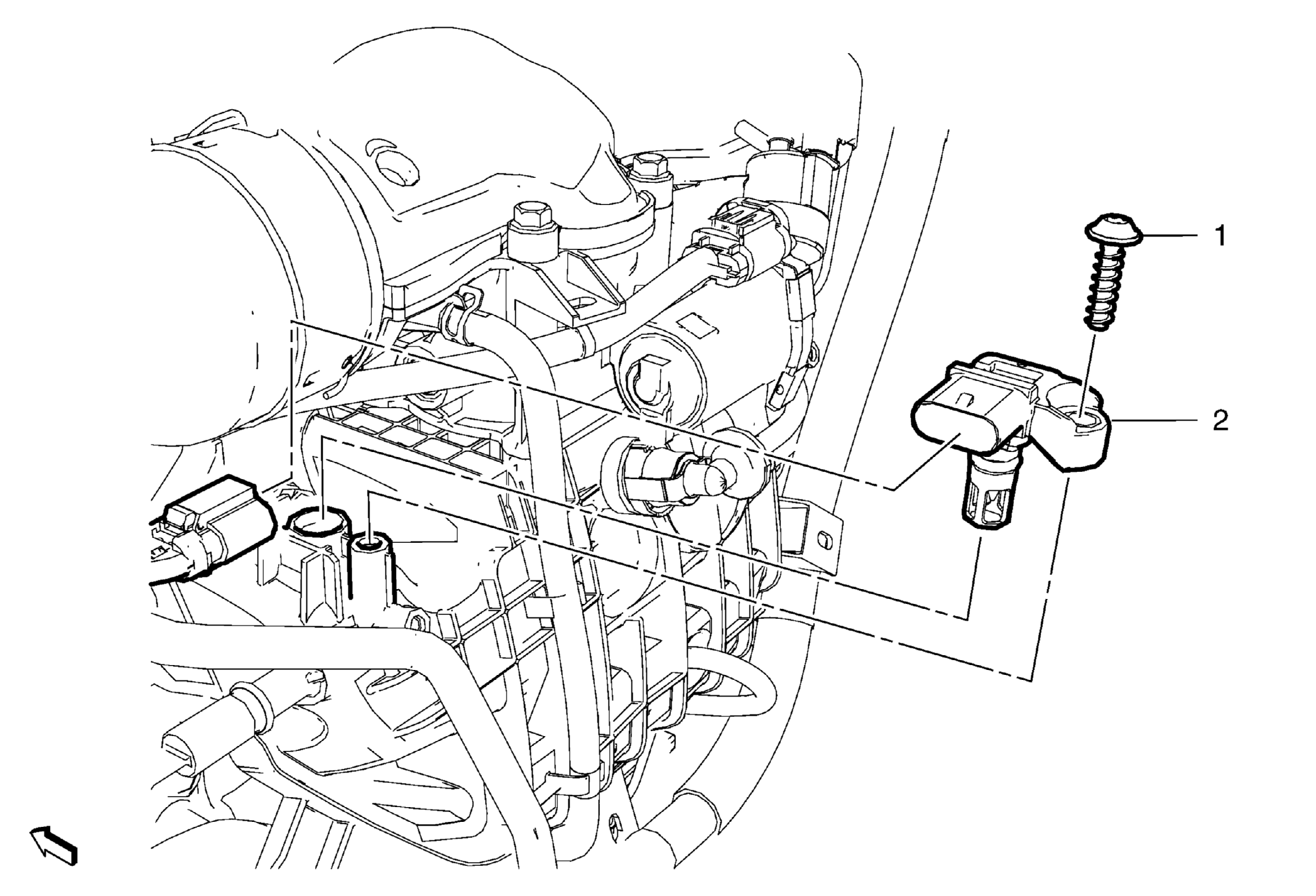

Fig 1: Intake Air Pressure and Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the engine sight shield. Refer to Engine Shield Replacement . Disconnect the electrical connection.
1	Intake Air Pressure and Temperature Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in).
2	Intake Air Pressure and Temperature Sensor

Callout

Component Name

Preliminary Procedure

Intake Air Pressure and Temperature Sensor Bolt

CAUTION:

Tighten
6 N.m (53 lb in).

Intake Air Pressure and Temperature Sensor
