Removal Procedure

  1. Remove the generator. Refer to Generator Replacement .
  2. Place a collecting basin underneath.

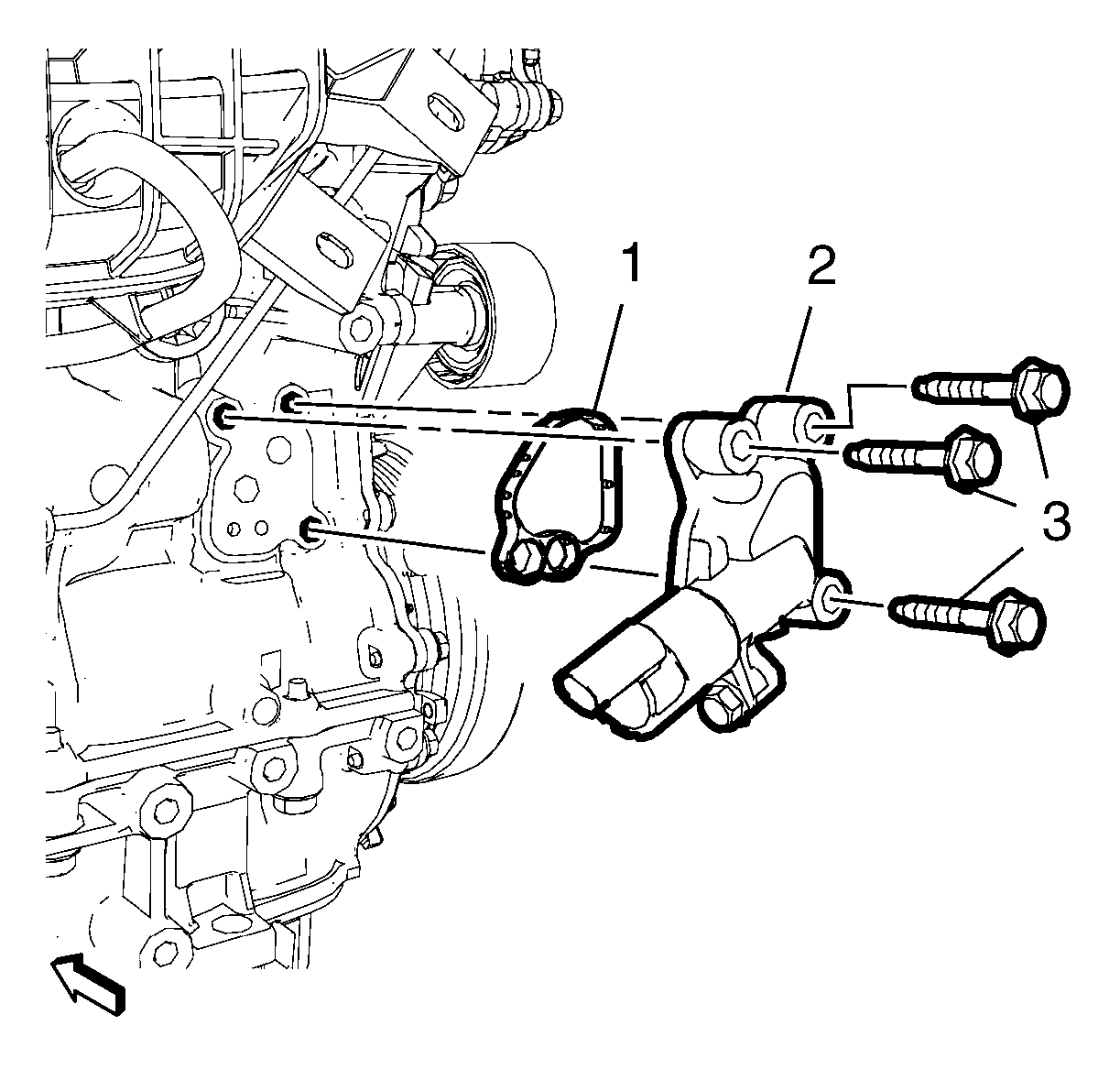

    3. Fig 1: Oil Pump Flow Control Valve
    GM3216214Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the oil pump flow control valve wiring harness plug.
  4. Remove the 3 oil pump flow control valve bolts (3).
  5. Remove the oil pump flow control valve (2).
  6. Remove an DISCARD the oil pump flow control valve seal (1).
