Windshield Washer Solvent Container Level Sensor Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

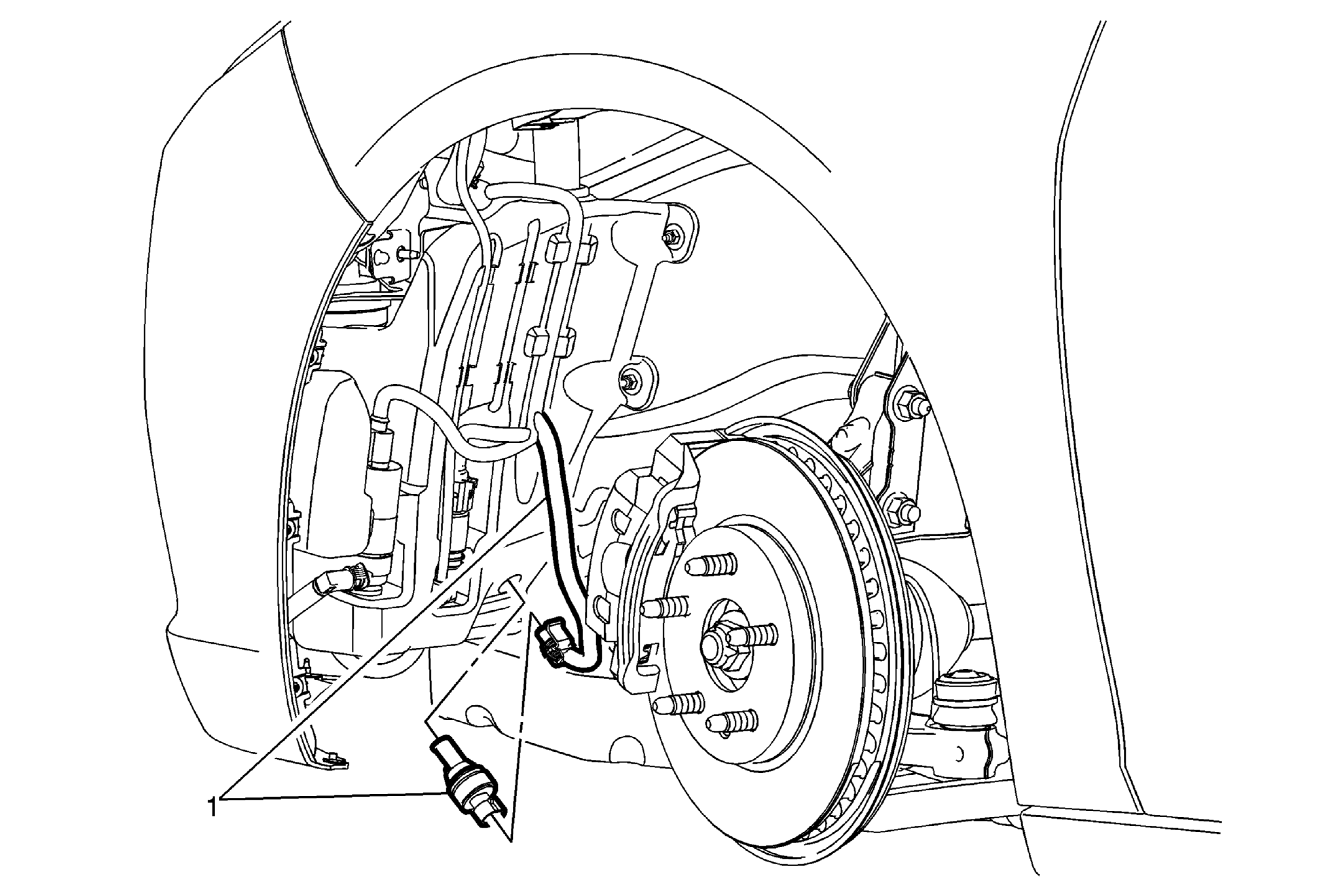

Fig 1: Windshield Washer Solvent Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Left Side) . Disconnect the electrical connector from the windshield washer solvent level sensor. Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed.
1	Windshield Washer Solvent Level Sensor Procedure Using two flat-bladed tools, place the ends of the flat blades under each side of the windshield washer solvent level sensor seal. Twisting in opposite directions, pry outward, the level sensor from the washer solvent container. Remove and discard the windshield washer level sensor grommet.

Callout

Component Name

Preliminary Procedures

Remove the left front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Left Side) .
Disconnect the electrical connector from the windshield washer solvent level sensor.
Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed.

Windshield Washer Solvent Level Sensor

Procedure

Using two flat-bladed tools, place the ends of the flat blades under each side of the windshield washer solvent level sensor seal.
Twisting in opposite directions, pry outward, the level sensor from the washer solvent container.
Remove and discard the windshield washer level sensor grommet.
