Windshield Wiper System Module Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

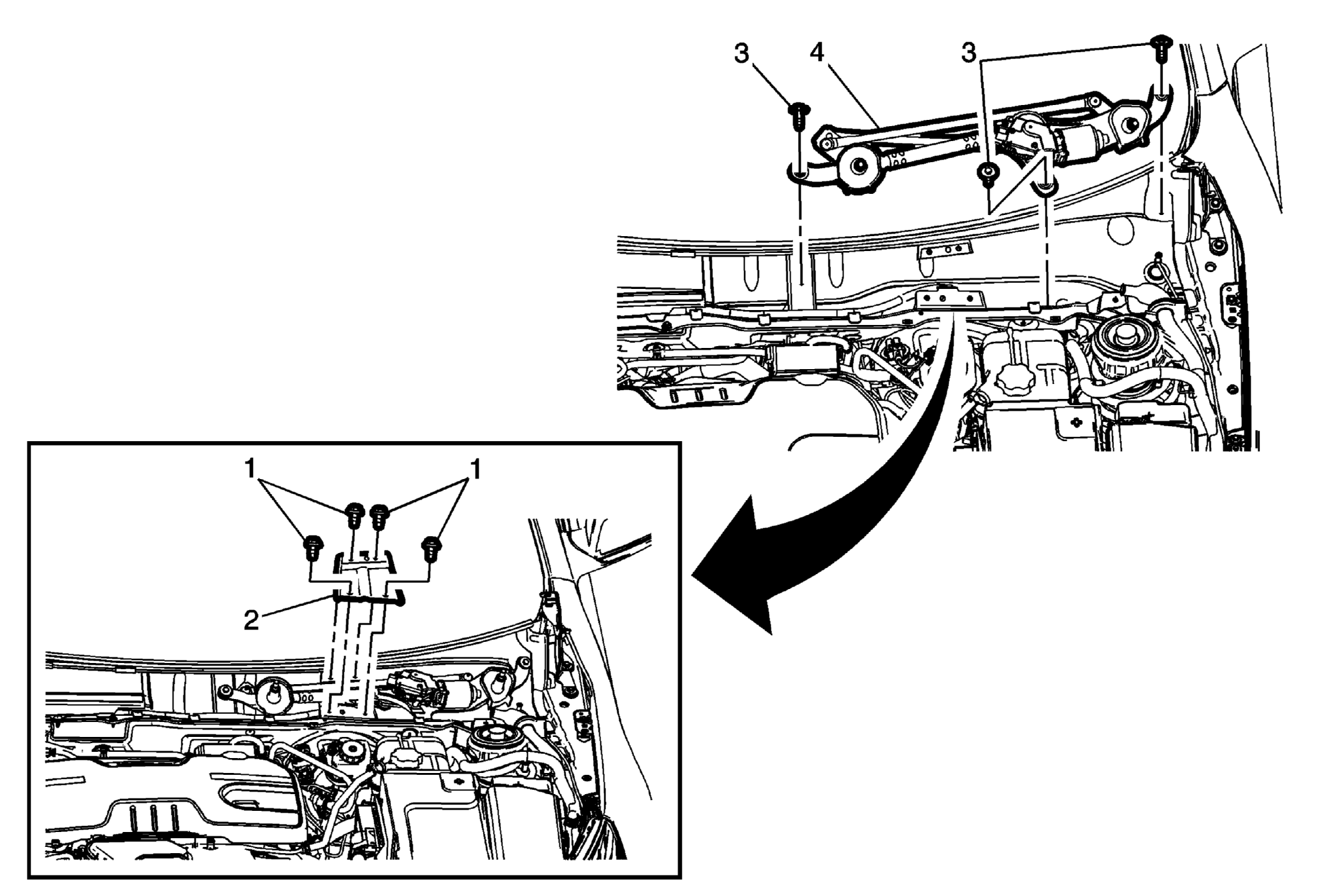

Fig 1: Windshield Wiper System Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Disconnect and reposition the electrical connector and harness from the windshield wiper motor and module.
1	Dash Panel Brace Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (79 lb in)
2	Dash Panel Brace
3	Windshield Wiper System Module Bolt (Qty: 3) Tighten 8 N.m (70 lb in)
4	Windshield Wiper System Module
