Audio Disc Player, USB, Auxiliary In and Memory Card Receptacle Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

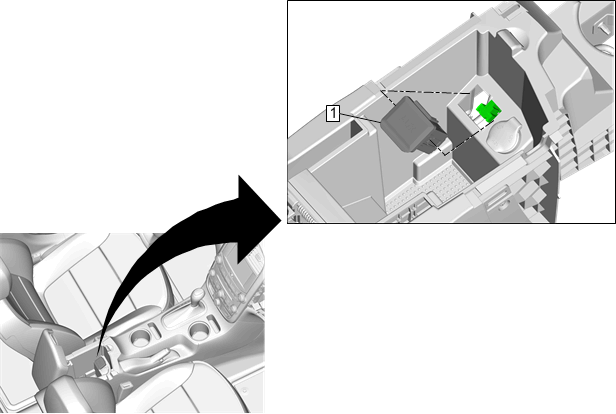

Fig 1: Audio Disc Player, USB, Auxiliary In And Memory Card Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Procedure Front Floor Console Assembly Replacement
1	Audio Disc Player, USB, Auxiliary In and Memory Card Receptacle Procedure Disconnect the electrical connectors. Open the armrest cover. Release the retaining tabs.

Callout

Component Name

Procedure
Front Floor Console Assembly Replacement

Audio Disc Player, USB, Auxiliary In and Memory Card Receptacle

Procedure

Disconnect the electrical connectors.
Open the armrest cover.
Release the retaining tabs.
