Installation Procedure

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

Install the generator (2) into position and tighten the fasteners (1) to 22 N.m (16 lb ft).

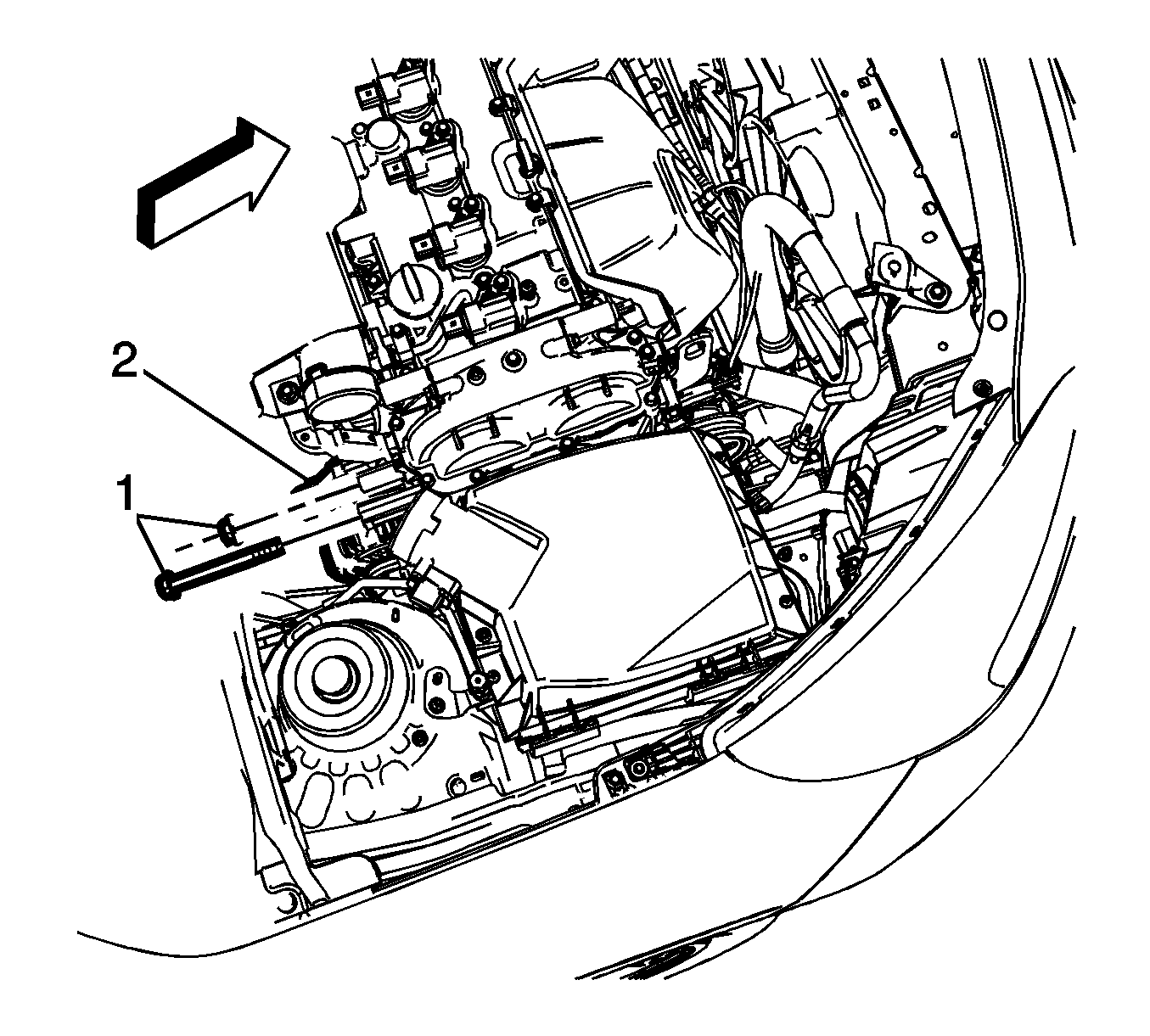

Fig 1: Upper Generator Mounting Fasteners
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Install the generator lower mounting fastener (2) and tighten to 22 N.m (16 lb ft).

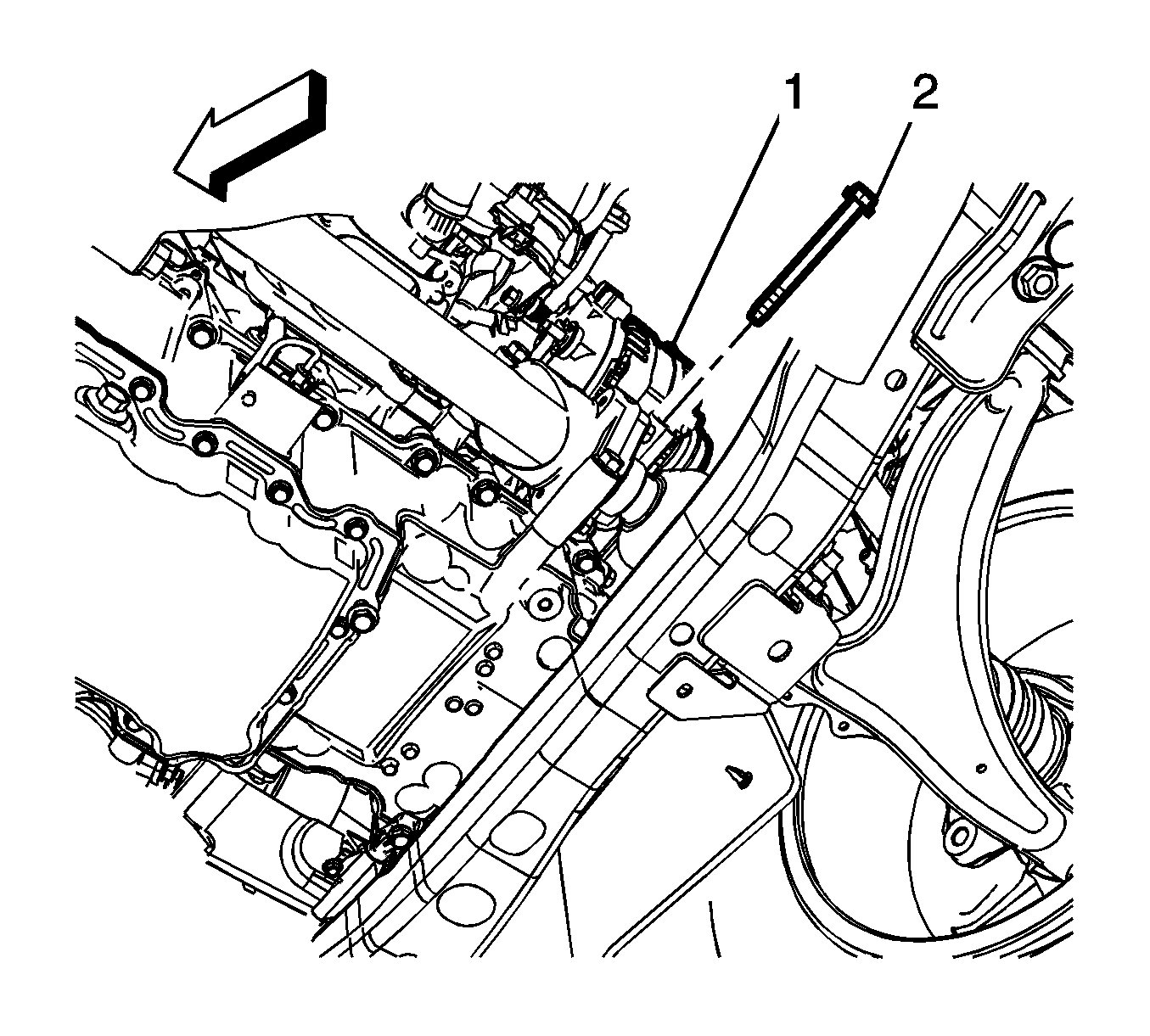

Fig 2: Lower Generator Mounting Fastener
Courtesy of GENERAL MOTORS COMPANY
Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
Install the battery positive cable (3) to the back of the generator and tighten the fastener (2) to 15 N.m (11 lb ft).

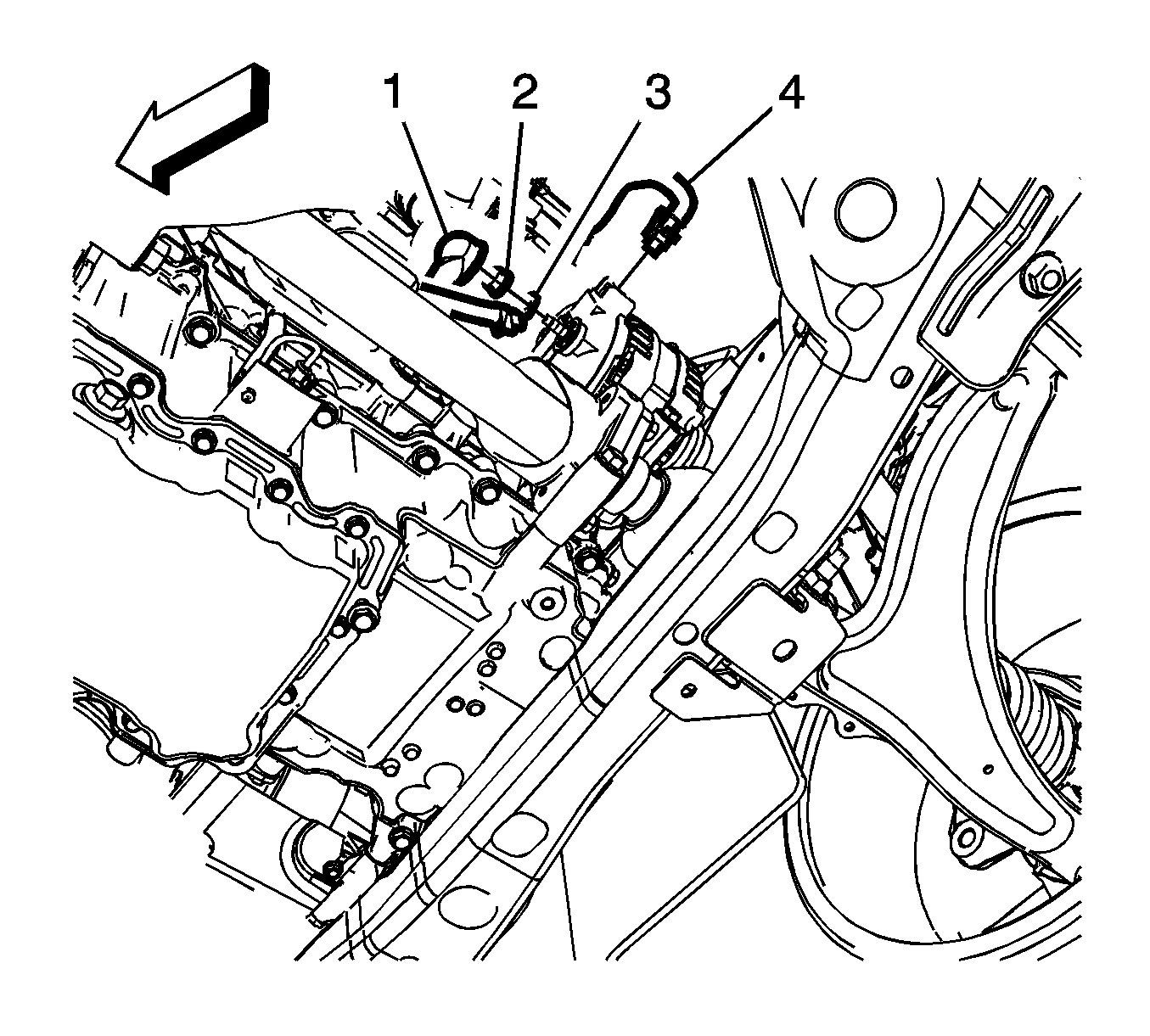

Fig 3: Protective Boot And Battery Positive Cable Fastener
Courtesy of GENERAL MOTORS COMPANY
Install the protective boot (1) and connect the engine wiring harness connector (4).
Install the drive belt. Refer to Drive Belt Replacement .
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
