Outside Rearview Mirror Remote Control Switch Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

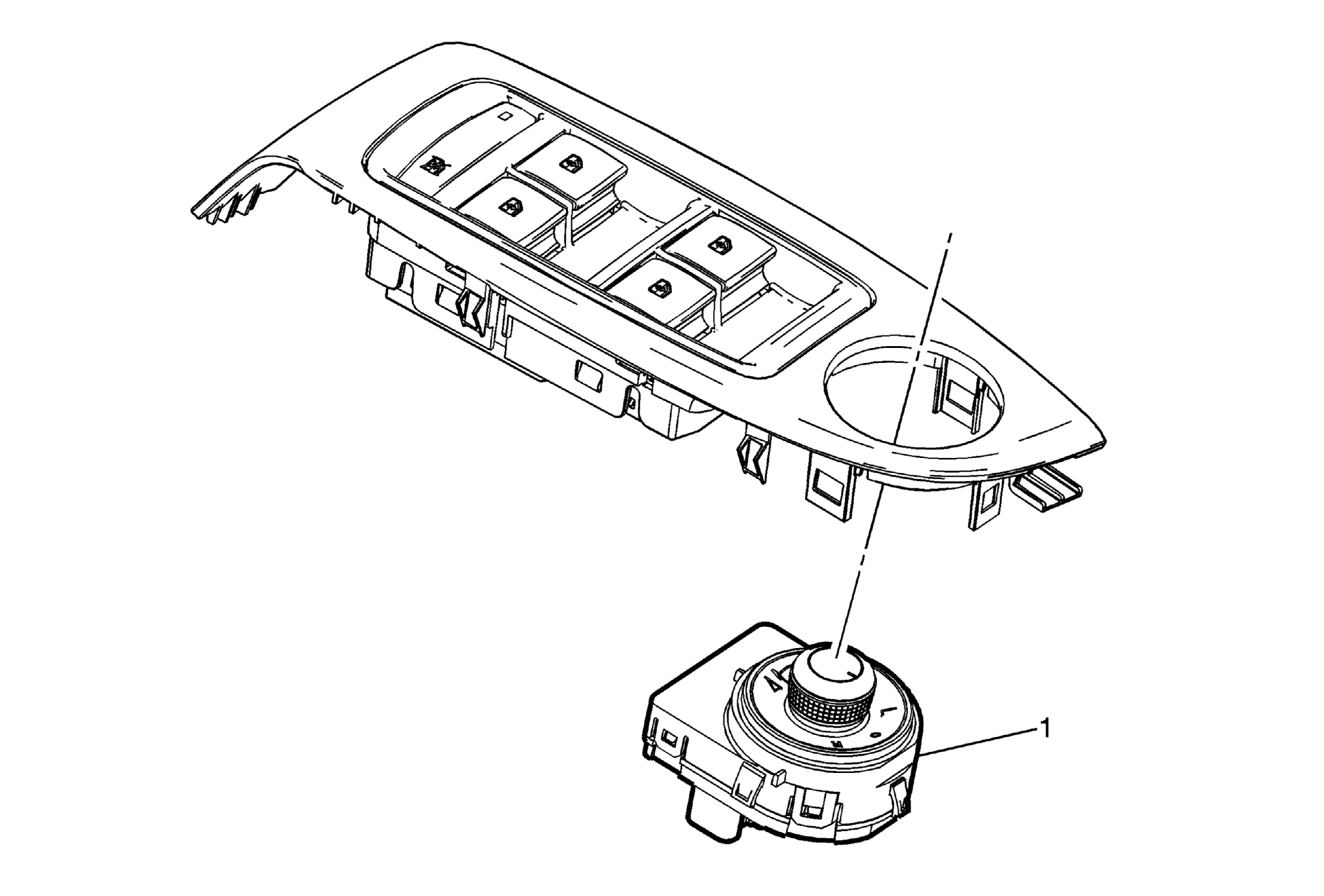

Fig 1: Outside Rearview Mirror Remote Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door accessory switch mount plate - drivers side door. Refer to Front Side Door Accessory Switch Mount Plate Replacement (Drivers Side Door) and Front Side Door Accessory Switch Mount Plate Replacement (Passenger Side Door) .
1	Outside Remote Control Rearview Mirror Switch Assembly Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front side door accessory switch mount plate - drivers side door. Refer to Front Side Door Accessory Switch Mount Plate Replacement (Drivers Side Door) and Front Side Door Accessory Switch Mount Plate Replacement (Passenger Side Door) .

Outside Remote Control Rearview Mirror Switch Assembly

Procedure

Disconnect the electrical connector.
Refer to Control Module References for programming and set up procedures.
