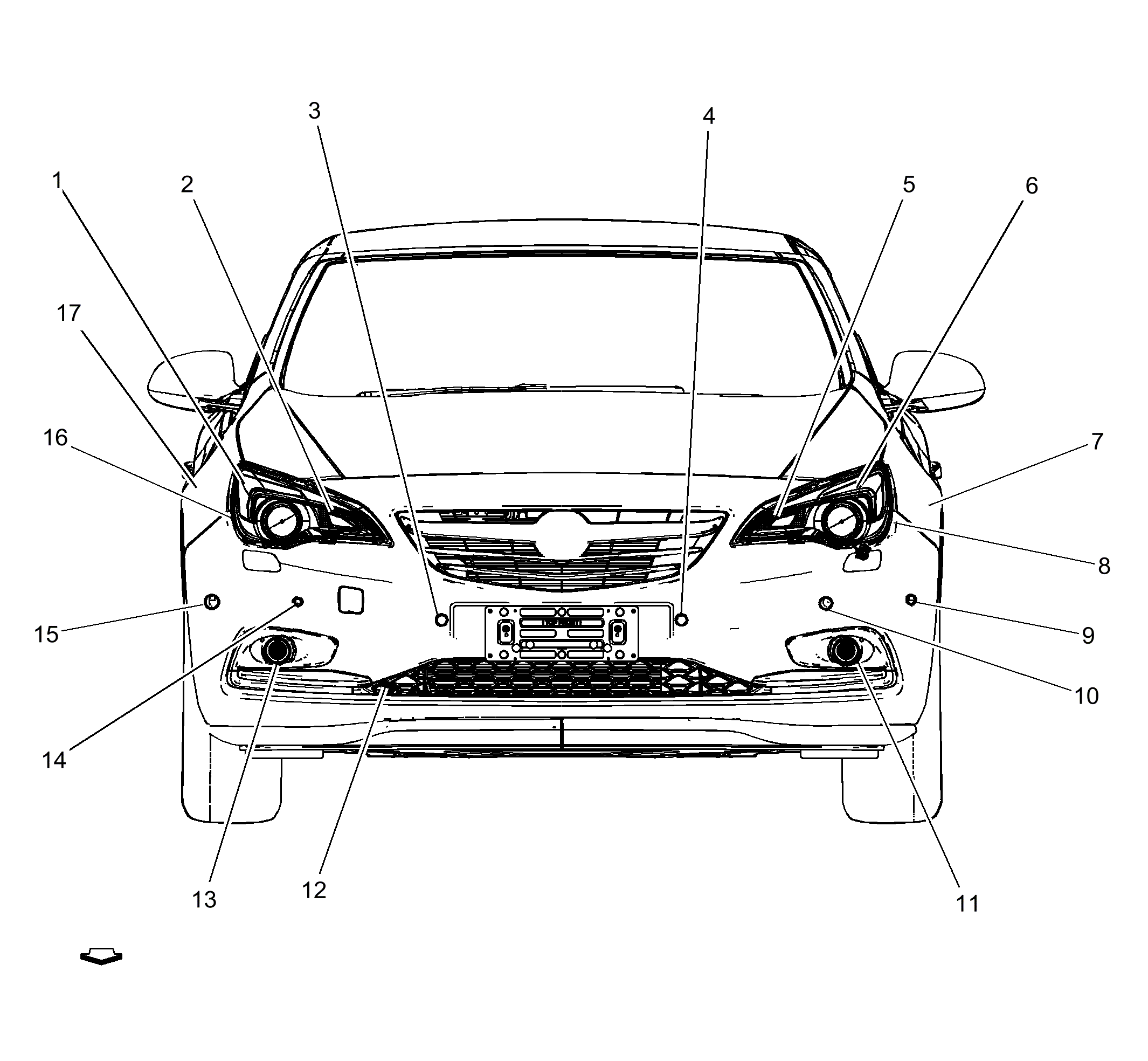

Front of the Vehicle Components
Front of the Vehicle Components
| Items |
|---|
| 1. E4AD Park/Daytime Running Lamp - Right |
| 2. E4RF Turn Signal Lamp - Right Front |
| 3. B78D Front Object Sensor - Right Middle (UDP) B78D Front Object Sensor - Right Middle |
| 4. B78C Front Object Sensor - Left Middle (UDP) B78C Front Object Sensor - Left Middle |
| 5. E4LF Turn Signal Lamp - Left Front |
| 6. E4AC Park/Daytime Running Lamp - Left |
| 7. E4Y Turn Signal Repeater Lamp - Left E4Y Turn Signal Repeater Lamp - Left |
| 8. E13LA Headlamp Assembly - Left |
| 9. B166LF Advanced Parking Assist Side Object Sensor - Left Front (UDP) B166LF Advanced Parking Assist Side Object Sensor - Left Front |
| 10. B78A Front Object Sensor - Left Outer (UDP) B78A Front Object Sensor - Left Outer |
| 11. E29LF Fog Lamp - Left Front E29LF Fog Lamp - Left Front |
| 12. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 13. E29RF Fog Lamp - Right Front E29RF Fog Lamp - Right Front |
| 14. B78B Front Object Sensor - Right Outer (UDP) B78B Front Object Sensor - Right Outer |
| 15. B166RF Advanced Parking Assist Side Object Sensor - Right Front (UDP) B166RF Advanced Parking Assist Side Object Sensor - Right Front |
| 16. E13RA Headlamp Assembly - Right |
| 17. E4Z Turn Signal Repeater Lamp - Right E4Z Turn Signal Repeater Lamp - Right |
