Installation Procedure
- Start all nuts by hand before finalizing any torques.
- Do not bend the steering column energy absorbing straps located on the upper steering column mounting bracket during installation.

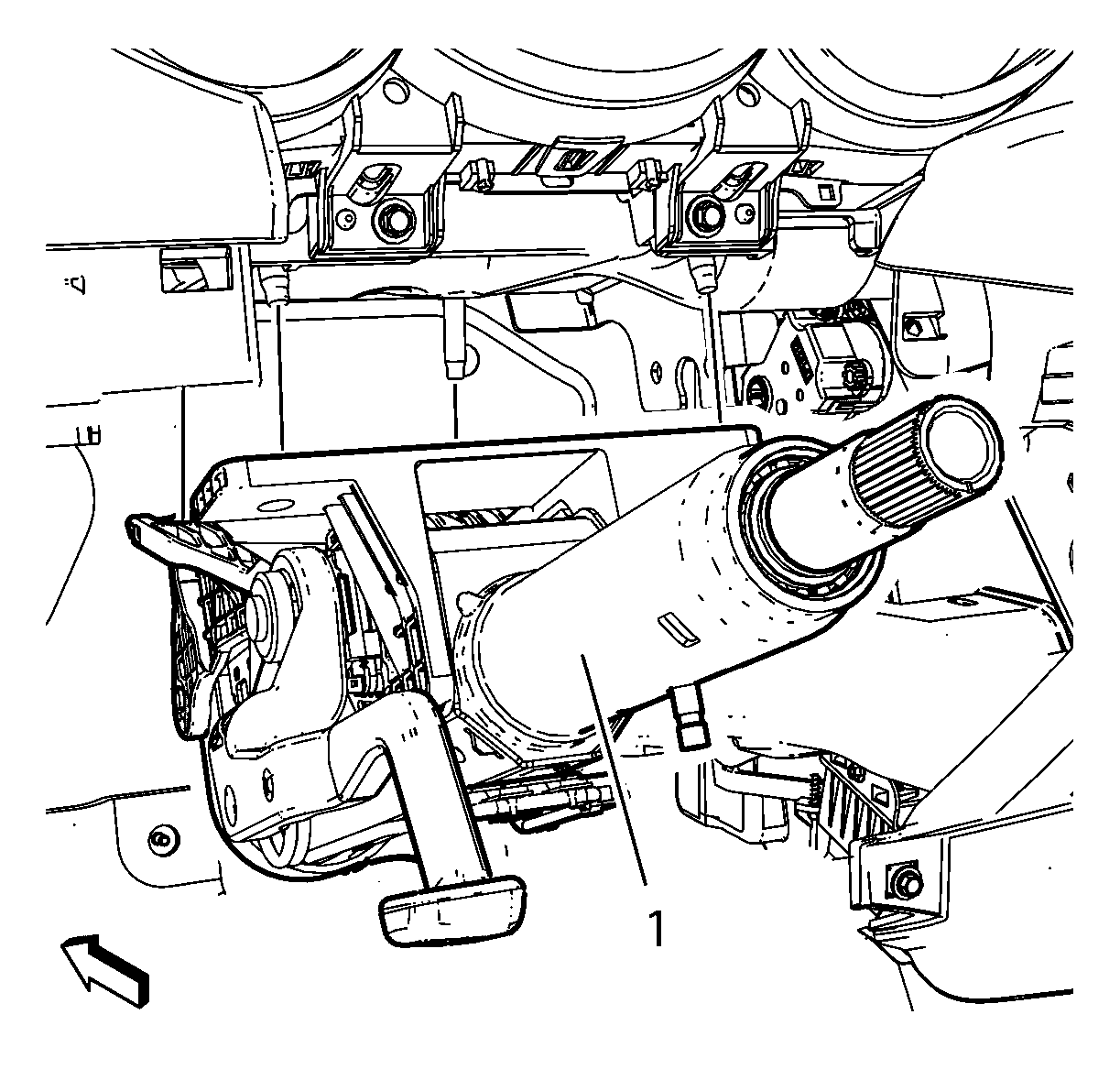

- Install the steering column (1).

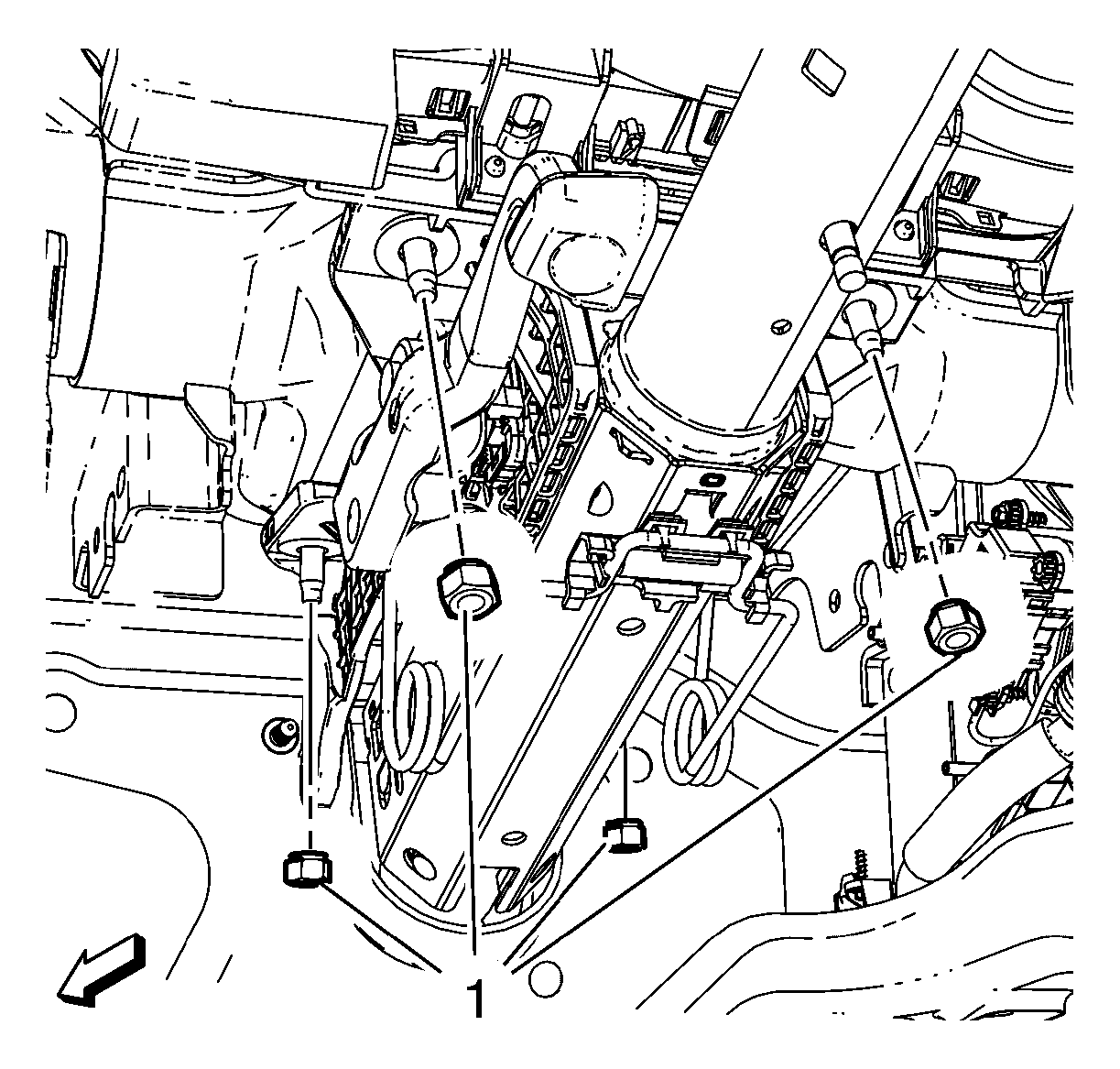

- Install and tighten the 4 NEW steering column nuts (1) to 22 N.m (16 lb ft).
- Tighten the steering column lower fasteners before you tighten the steering column upper fasteners. Failure to do this can damage the steering column.
- Tighten the steering column fasteners to the specified torque. Overtightening the upper steering column fasteners could affect the steering column collapse.
- Remove the tie straps.
- Connect the electrical connectors as needed.
- Install the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement .
- Install the intermediate steering shaft. Refer to Intermediate Steering Shaft Replacement .
- Install the instrument panel lower trim panel - left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
- Calibrate the steering angle sensor. Refer to Power Steering Control Module Calibration .
NOTE:
CAUTION:
Refer to Fastener Caution .
WARNING:
In order to ensure the intended function of the steering column in a vehicle during a crash and in order to avoid personal injury to the driver, perform the following:
