Communication Interface Module Battery Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

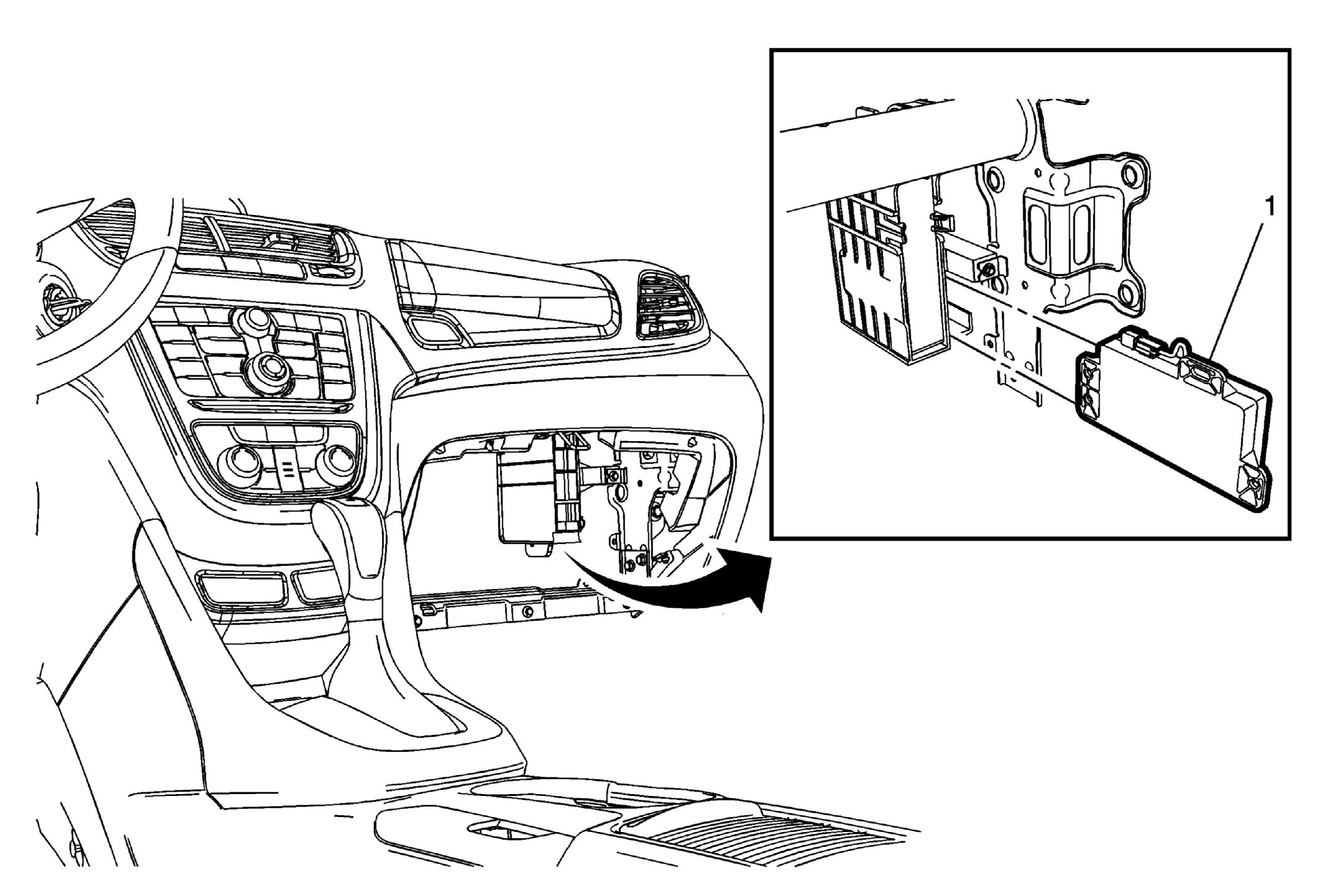

Fig 1: Communication Interface Module Battery (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement (Encore) .
1	Communication Interface Module Battery Procedure Slide the battery out of the bracket. Disconnect the electrical connections. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement (Encore) .

Communication Interface Module Battery

Procedure

Slide the battery out of the bracket.
Disconnect the electrical connections.
For programming and set up procedures, refer to Control Module References .
