Communication Interface Module Battery Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

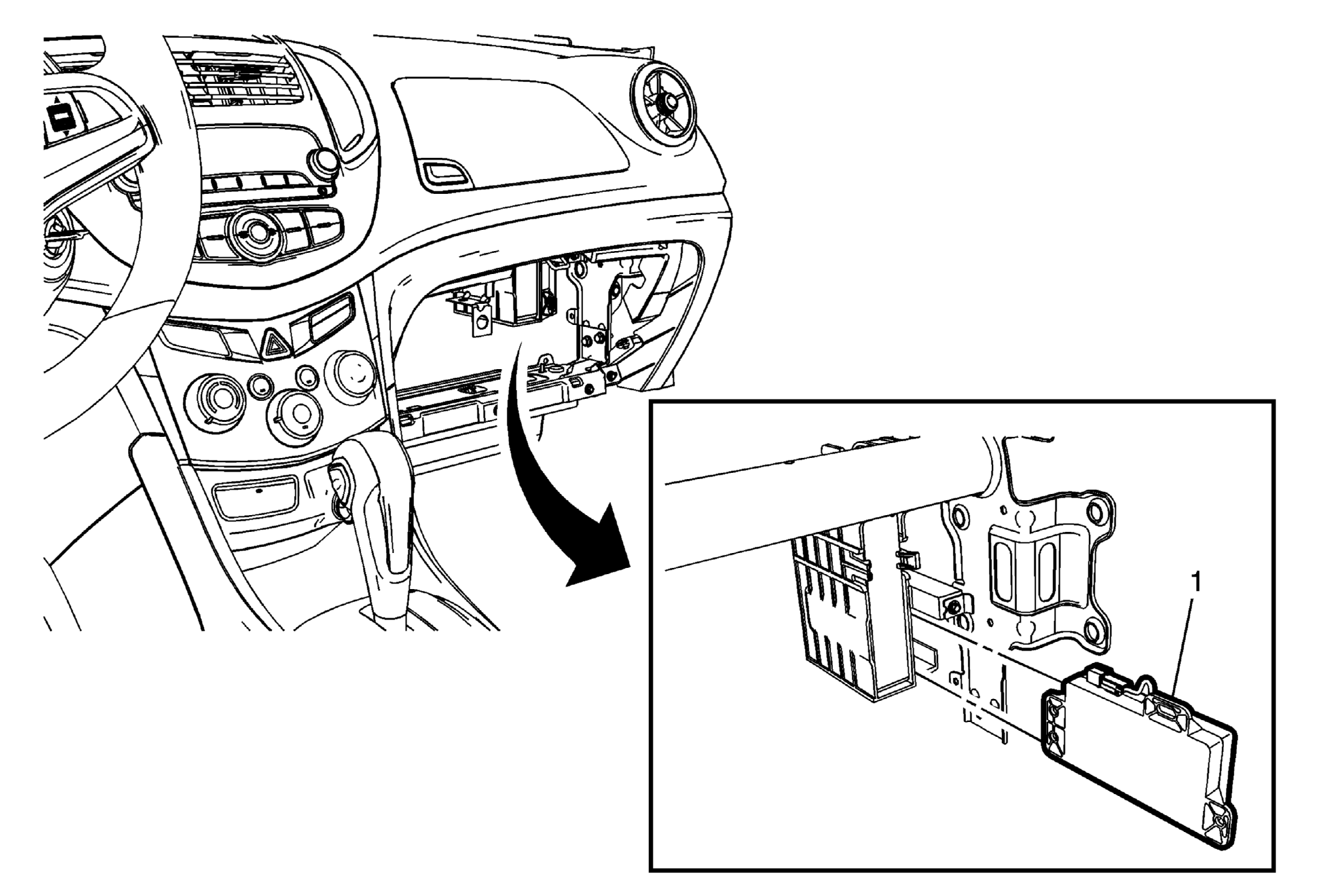

Fig 1: Communication Interface Module Battery (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement (Trax) .
1	Communication Interface Module Battery Procedure Slide the battery out of the bracket. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement (Trax) .

Communication Interface Module Battery

Procedure

Slide the battery out of the bracket.
For programming and set up procedures, refer to Control Module References .
