Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)
  2. Drive Belt - Remove Drive Belt Replacement
  3. Raise and support the vehicle. Lifting and Jacking the Vehicle
  4. Front Compartment Front Center Insulator - Remove Front Compartment Front Center Insulator Replacement
  5. Front Wheel Drive Shaft-Right Side<!-- Location --> - Remove Front Wheel Drive Shaft Replacement - Right Side

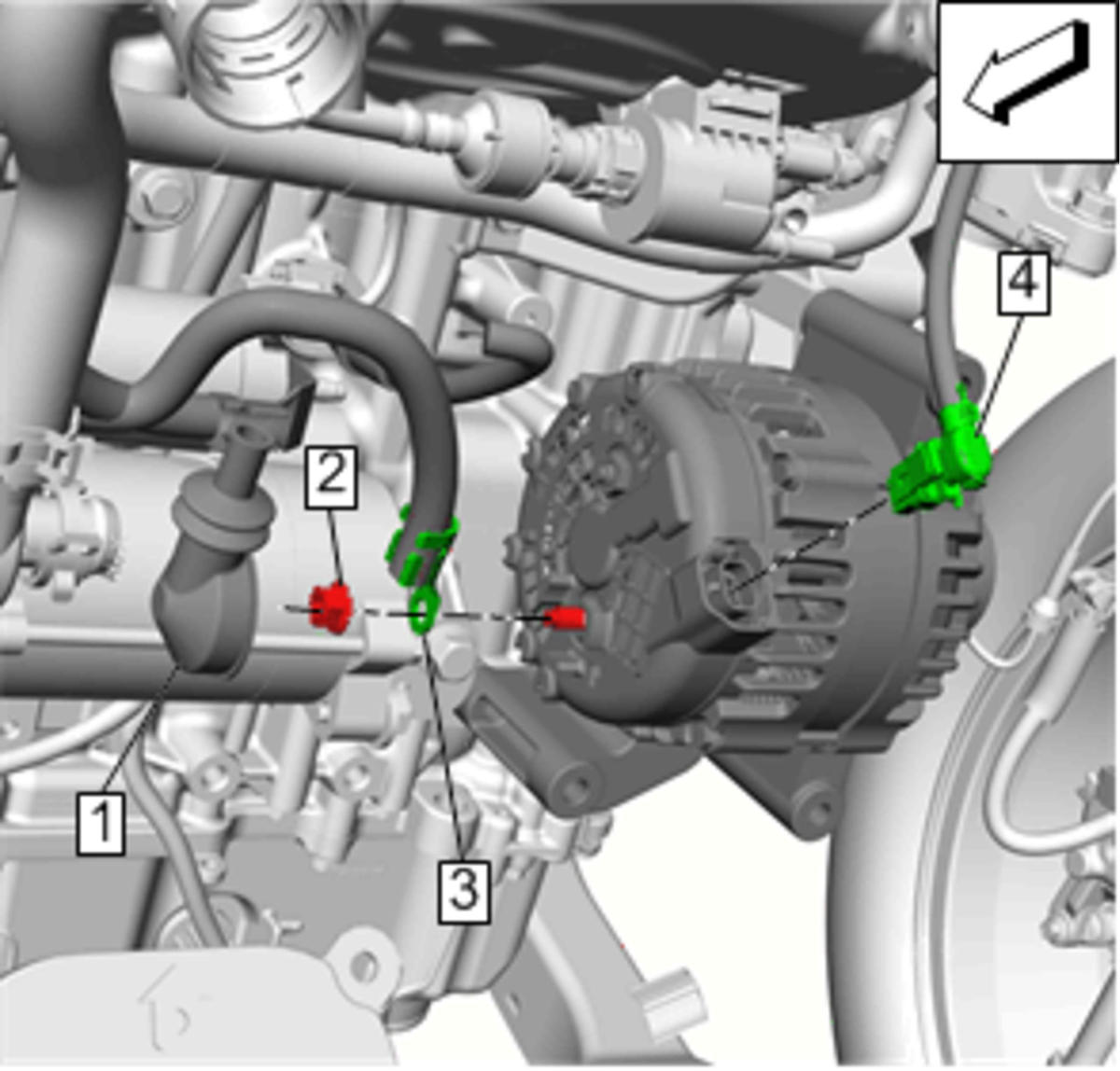

    6. Fig 1: Battery Positive Cable
    GM4169704Courtesy of GENERAL MOTORS COMPANY
  6. Generator Terminal Protective Boot (1) - Remove
  7. Generator Nut (2) - Remove
  8. Battery Positive Cable (3) - Remove
  9. Electrical Connector (4) - Disconnect

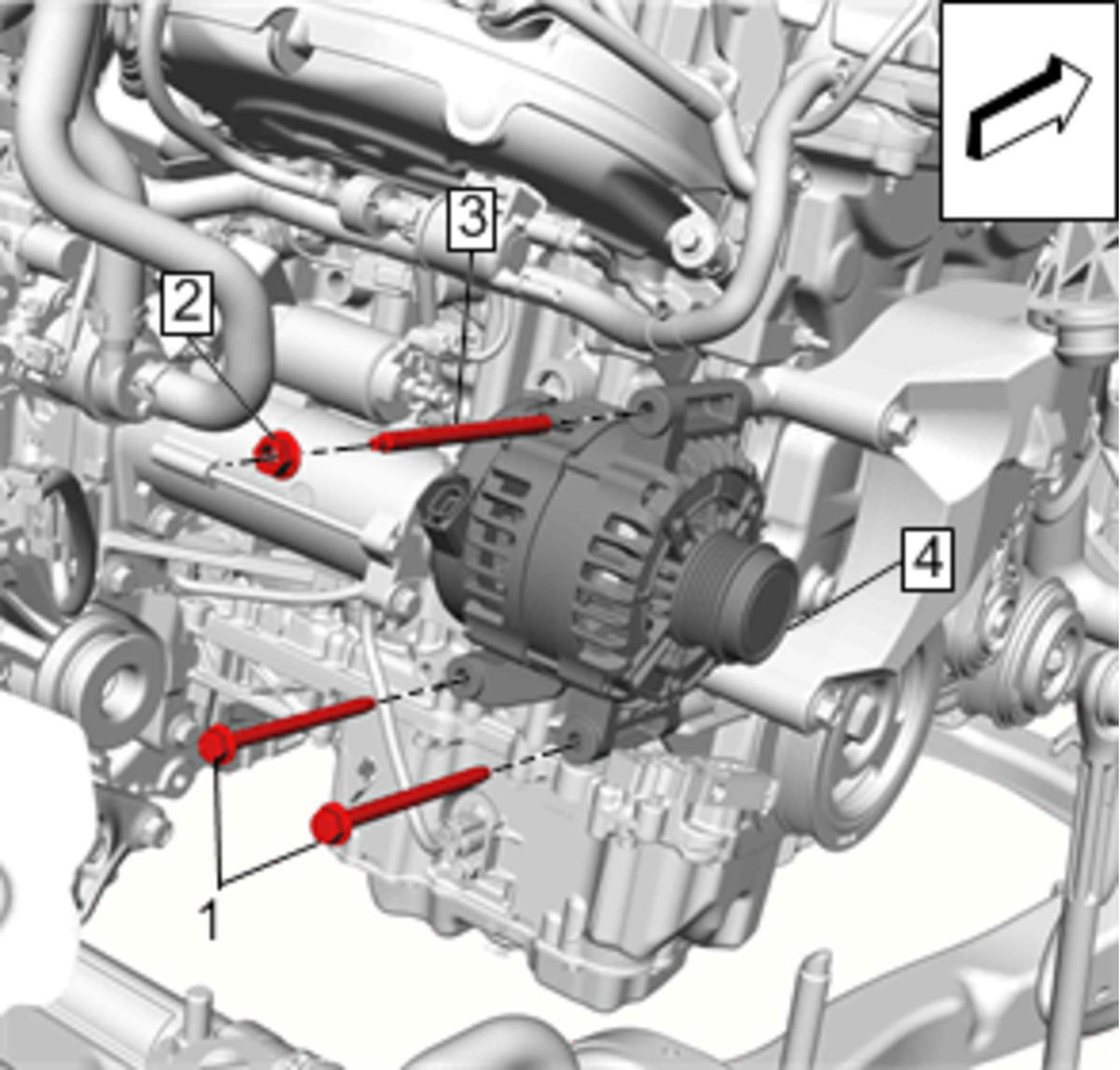

    10. Fig 2: Generator
    GM4169707Courtesy of GENERAL MOTORS COMPANY
  10. Generator Bolt - Remove (1)
  11. Generator Mounting Nut (2) - Remove
  12. Generator Mounting Stud (3) - Remove
  13. Generator (4) - Remove
