Airbag Instrument Panel Module Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

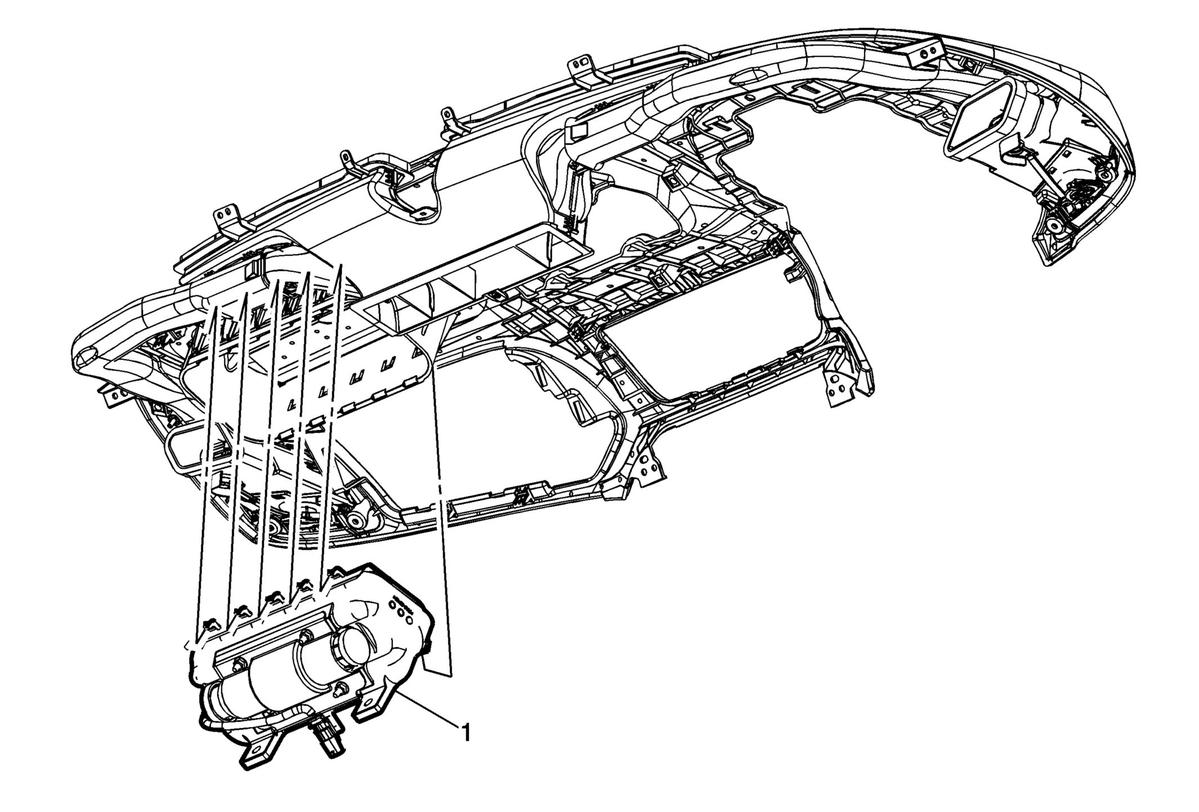

Fig 1: Airbag Instrument Panel Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement (Trax)Instrument Panel Upper Trim Panel Replacement (Encore) .
1	Instrument Panel Inflatable Restraint Module Assembly Procedure Release tabs on the instrument panel upper trim to allow hook retaining feature on Airbag to pass through. Refer to Inflatable Restraint Module Handling and Scrapping . Enable the SIR system. Refer to SIR Disabling and Enabling .

Callout

Component Name

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement (Trax)Instrument Panel Upper Trim Panel Replacement (Encore) .

Instrument Panel Inflatable Restraint Module Assembly

Procedure

Release tabs on the instrument panel upper trim to allow hook retaining feature on Airbag to pass through.
Refer to Inflatable Restraint Module Handling and Scrapping .
Enable the SIR system. Refer to SIR Disabling and Enabling .
