Infotainment Control Switch Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Trim Plate Replacement |
|

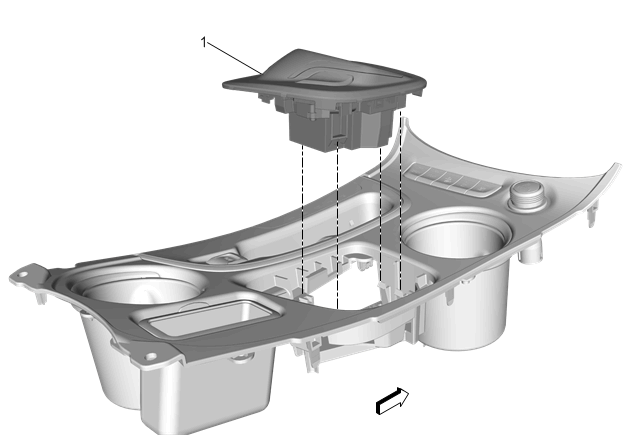

| 1 | Audio Multifunction Control Procedure Use the appropriate tool to depress the tabs and remove the control from the trim plate. |
