Air Cleaner Element Replacement

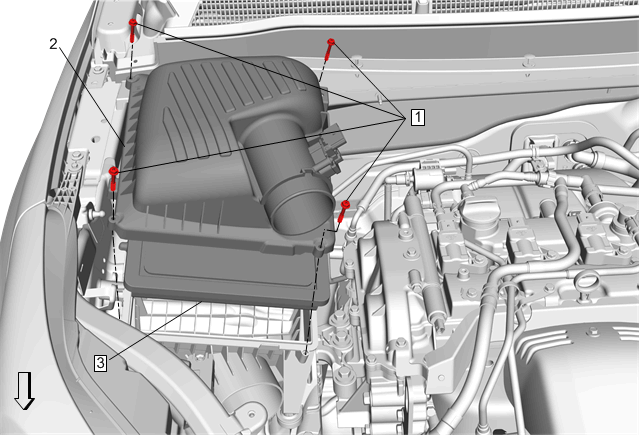

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . Disconnect the mass airflow sensor electrical connector.
1	Air Cleaner Housing Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Air Cleaner Housing
3	Air Cleaner Element
