Fuel Pump Insulator Replacement

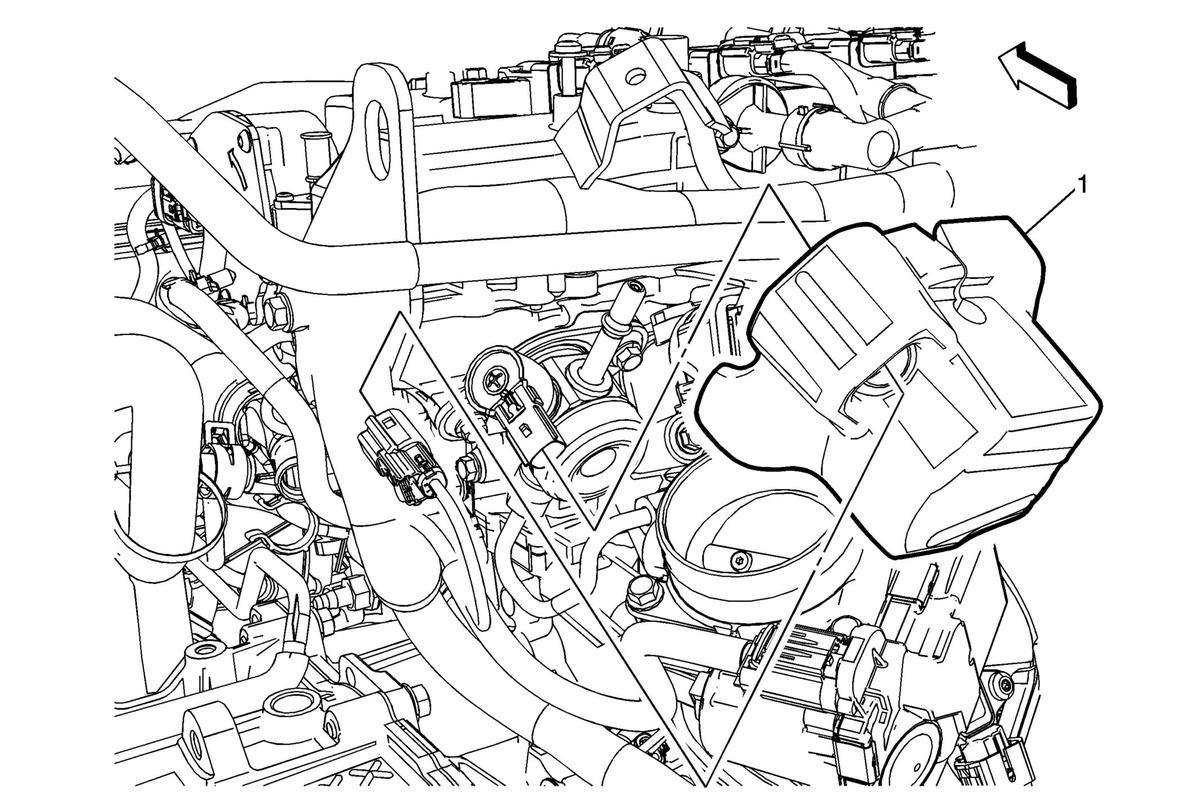

Fig 1: Fuel Pump Insulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel pump cover. Refer to Fuel Pump Cover Replacement Disconnect the fuel pump harness connector.
1	Fuel Pump Insulator WARNING: The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. NOTE: The fuel pump insulator just snaps into place.

Callout

Component Name

Preliminary Procedure

Remove the fuel pump cover. Refer to Fuel Pump Cover Replacement
Disconnect the fuel pump harness connector.

Fuel Pump Insulator

WARNING:

The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

NOTE:

The fuel pump insulator just snaps into place.
