Fuel Pump Power Control Module Replacement

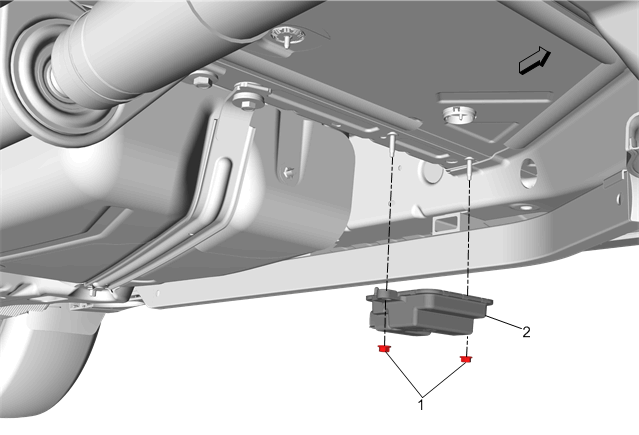

Fig 1: Fuel Pump Power Control Module
GM3823907Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Fuel Pump Power Control Module Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Fuel Pump Power Control Module
  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Refer to Control Module References .
