Fuel Tank Strap Replacement

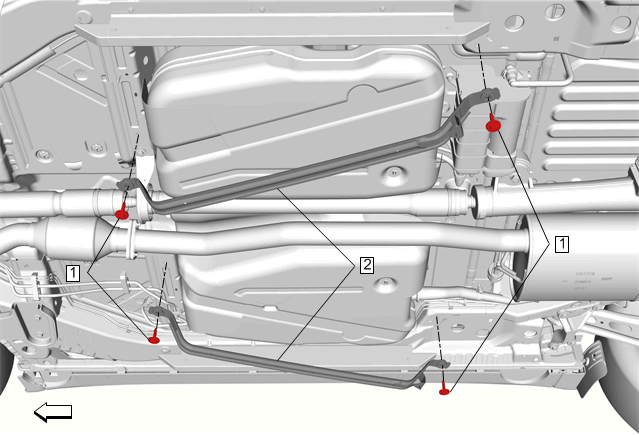

Fig 1: Fuel Tank Strap

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Underbody Rear Air Deflector Replacement - Left Side Underbody Rear Air Deflector Replacement - Right Side Place a suitable adjustable jack under the fuel tank.
1	Fuel Tank Strap Fastener CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Fuel Tank Strap

Callout

Component Name

Preliminary Procedures

Fuel Tank Strap Fastener

CAUTION:

Tighten
22 N.m (16 lb ft)

Fuel Tank Strap
