Intake Air Baffle Replacement

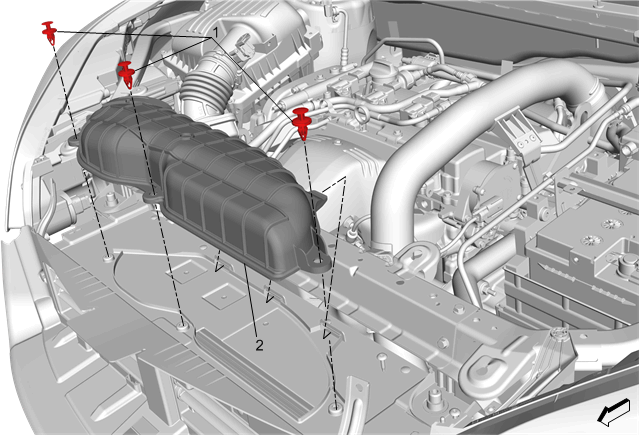

Fig 1: Intake Air Baffle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement . Remove the intake air duct. Refer to Intake Air Duct Replacement .
1	Intake Air Baffle Retainers (Qty: 3)
2	Intake Air Baffle

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement .
Remove the intake air duct. Refer to Intake Air Duct Replacement .

Intake Air Baffle Retainers (Qty: 3)

Intake Air Baffle
