Knock Sensor Replacement

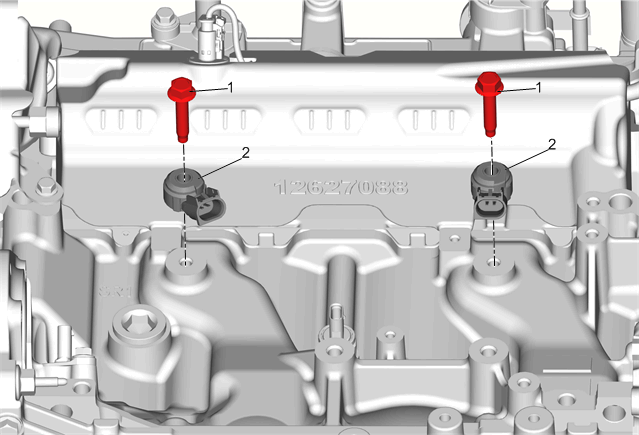

Fig 1: Knock Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and properly support the vehicle. Refer to Lifting and Jacking the Vehicle . If replacing the rear knock sensor, Remove the Starter. Refer to Starter Replacement (LTG) .
1	Knock Sensor Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Knock Sensors (Qty: 2) Procedure Disconnect the electrical wiring harness connectors from the knock sensors.

Callout

Component Name

Preliminary Procedure

Raise and properly support the vehicle. Refer to Lifting and Jacking the Vehicle .
If replacing the rear knock sensor, Remove the Starter. Refer to Starter Replacement (LTG) .

Knock Sensor Fasteners (Qty: 2)

CAUTION:

Tighten
25 N.m (18 lb ft)

Knock Sensors (Qty: 2)
Procedure
Disconnect the electrical wiring harness connectors from the knock sensors.
