Oil Pump Flow Control Valve Heat Shield Replacement

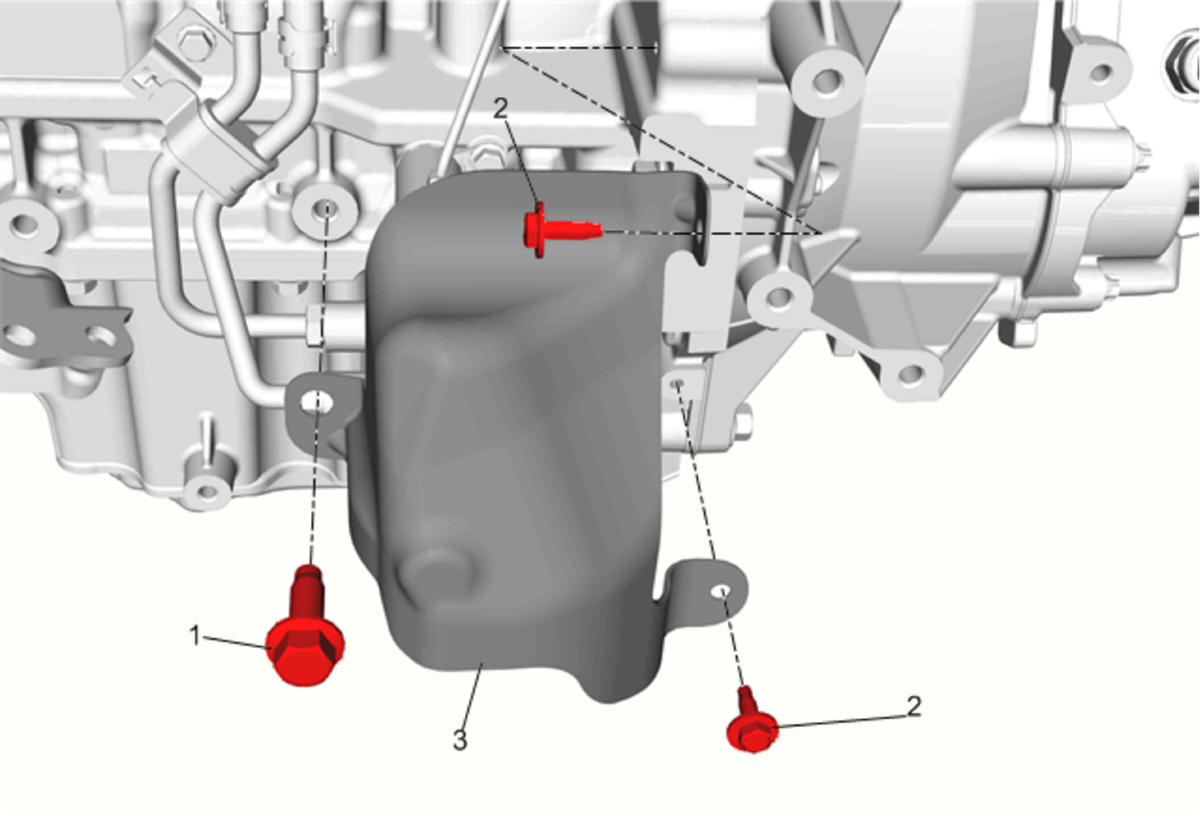

Fig 1: Oil Pump Flow Control Valve Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the catalytic converter. Refer to Catalytic Converter Replacement (LTG) .
1	Oil Pump Flow Control Valve Heat Shield Fastener CAUTION: Refer to Fastener Caution . Tighten  58 N.m (43 lb ft)
2	Pump and Component Oil Heat Shield Fasteners (Qty 2) Tighten  9 N.m (80 lb in)
3	Oil Pump Flow Control Valve Heat Shield
