Mode Control Cam Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

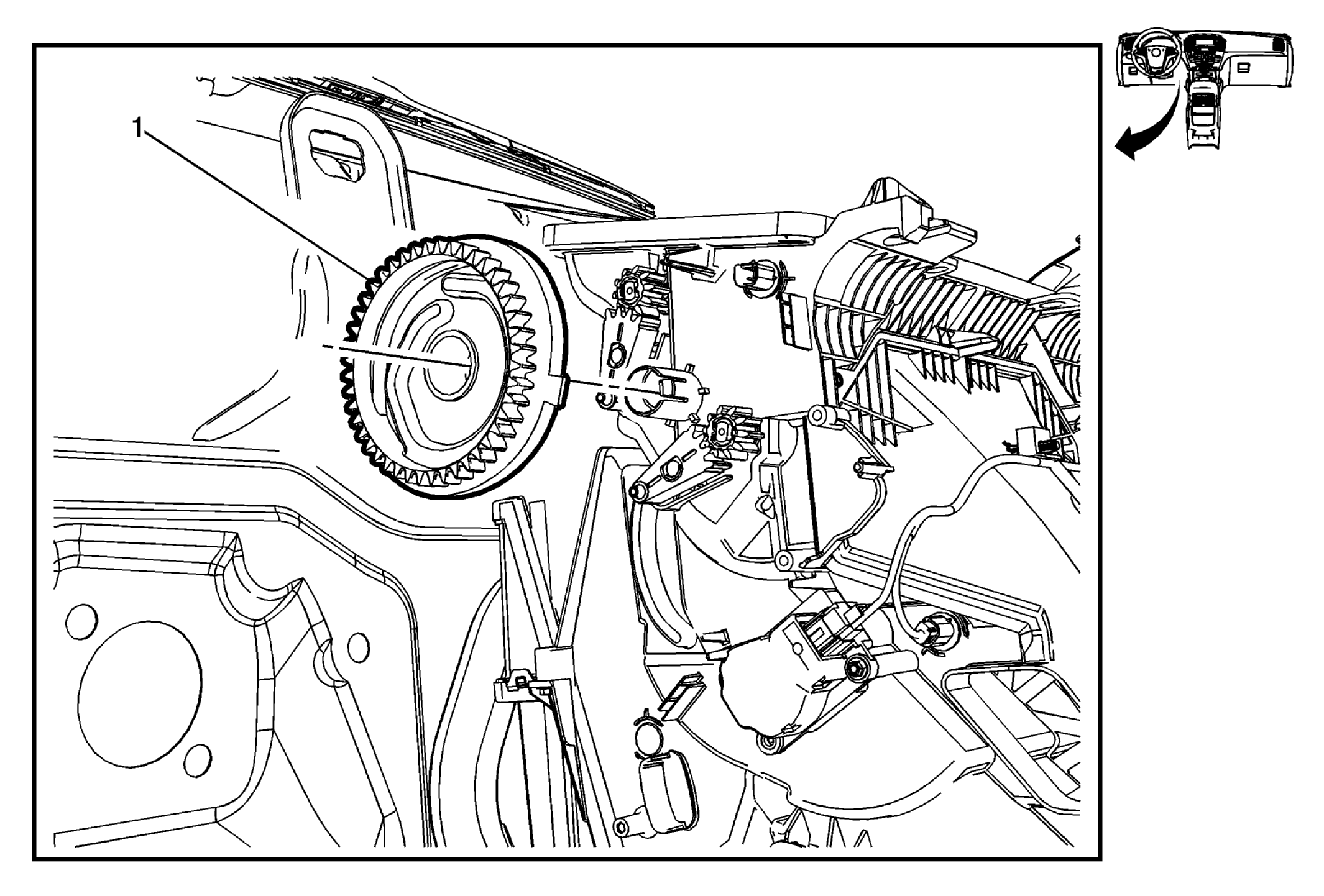

Fig 1: Mode Control Cam

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Mode Control Cam Procedures Release the tab in the center and pull off the mode control cam. The mode control cam can only be fitted in one direction. Perform the mode control cam alignment procedure. Refer to Mode Control Cam Alignment .

Callout

Component Name

Preliminary Procedure
Remove the mode control cam actuator. Refer to Mode Control Cam Actuator Replacement .

Mode Control Cam

Procedures

Release the tab in the center and pull off the mode control cam.
The mode control cam can only be fitted in one direction.
Perform the mode control cam alignment procedure. Refer to Mode Control Cam Alignment .
