Installation Procedure

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

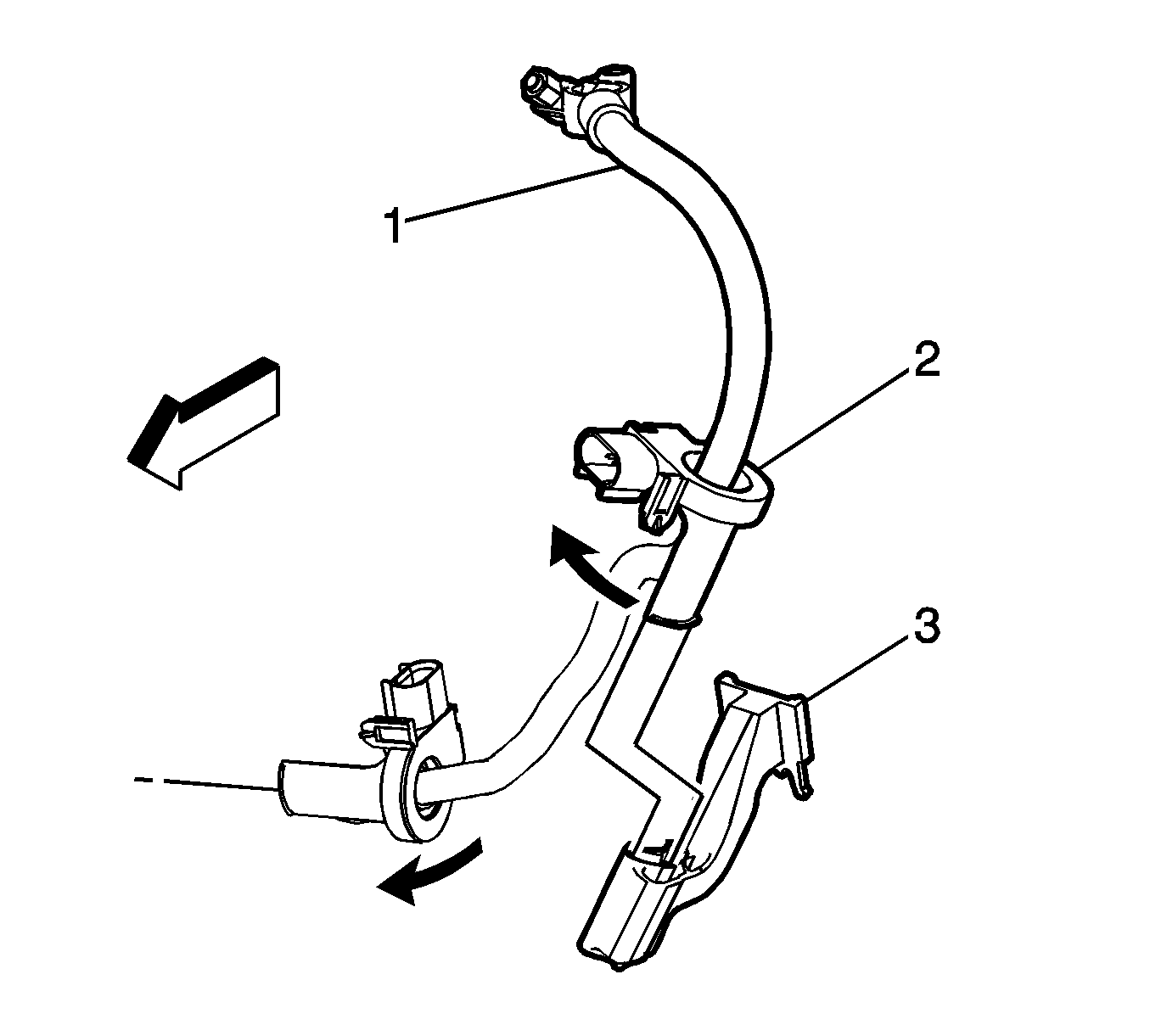

Fig 1: Battery Current Sensor Components

Courtesy of GENERAL MOTORS COMPANY

Slide the NEW battery current sensor (2) up onto the battery cable (1).
Attach the sensor to the battery current sensor bracket (3).

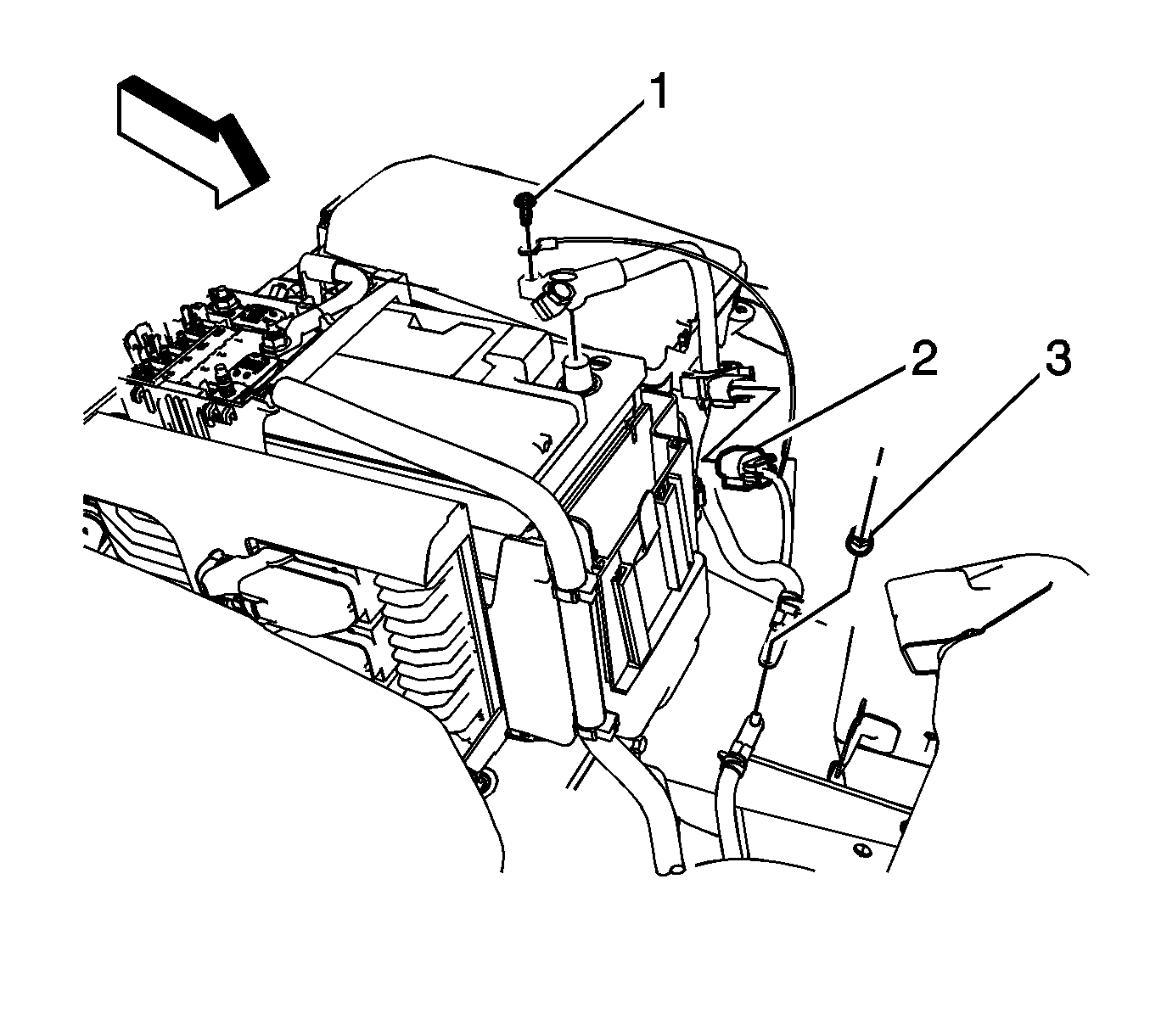

Fig 2: Body Harness Electrical Connector And Negative Battery Cable Frame Ground Ring Terminal Nut

Courtesy of GENERAL MOTORS COMPANY

Install the negative battery cable frame ground and tighten nut (3) to 12 N.m (9 lb ft).
Connect the body harness electrical connector (2) to the battery current sensor.
