Battery Positive Fuse Block Cable Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

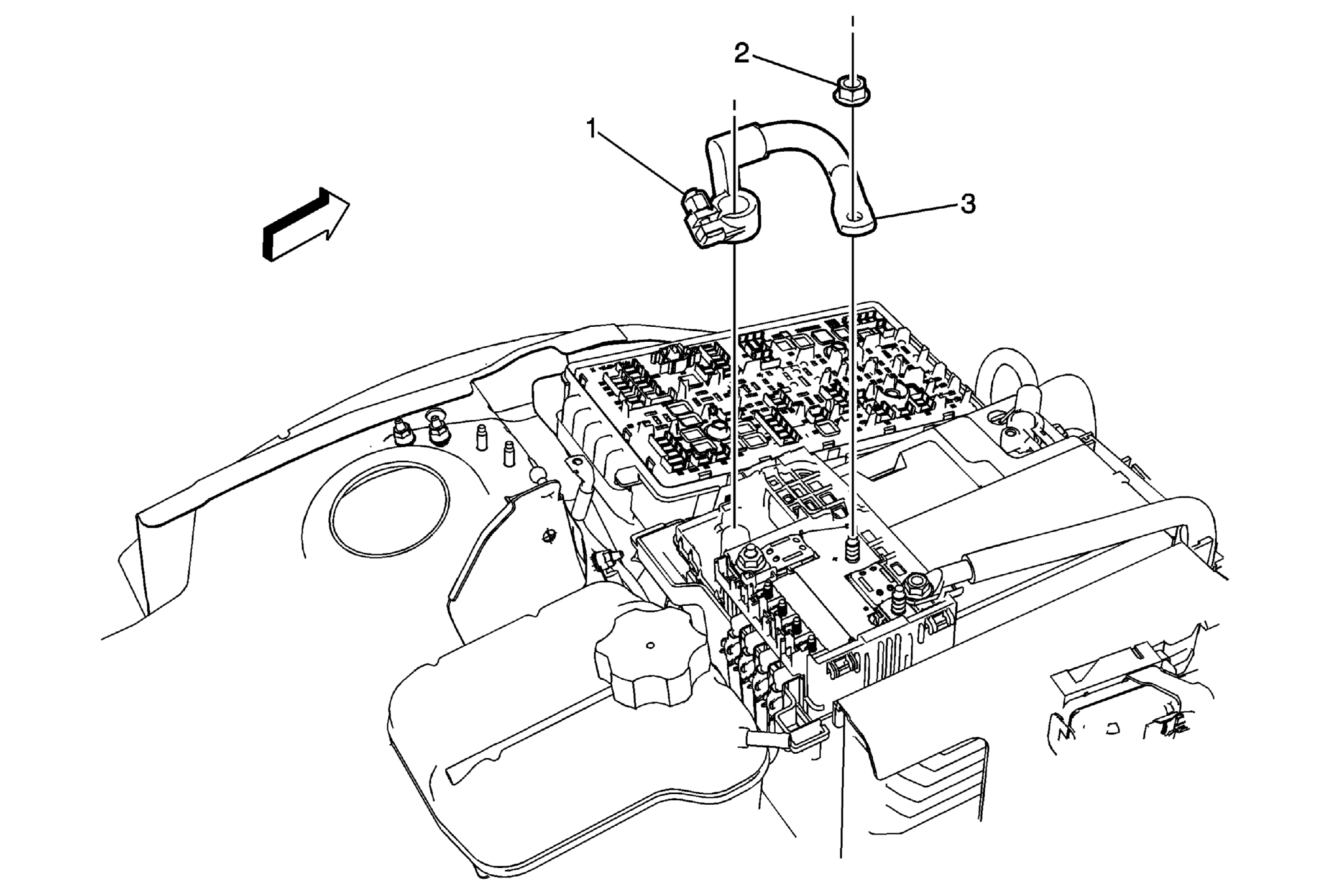

Fig 1: Battery Positive Fuse Block Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Open the battery fuse block cover.
1	Nut CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (44 lb in)
2	Nut Tighten 20 N.m (15 lb ft)
3	Battery Positive Fuse Block Cable
