SIR Identification Views
WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

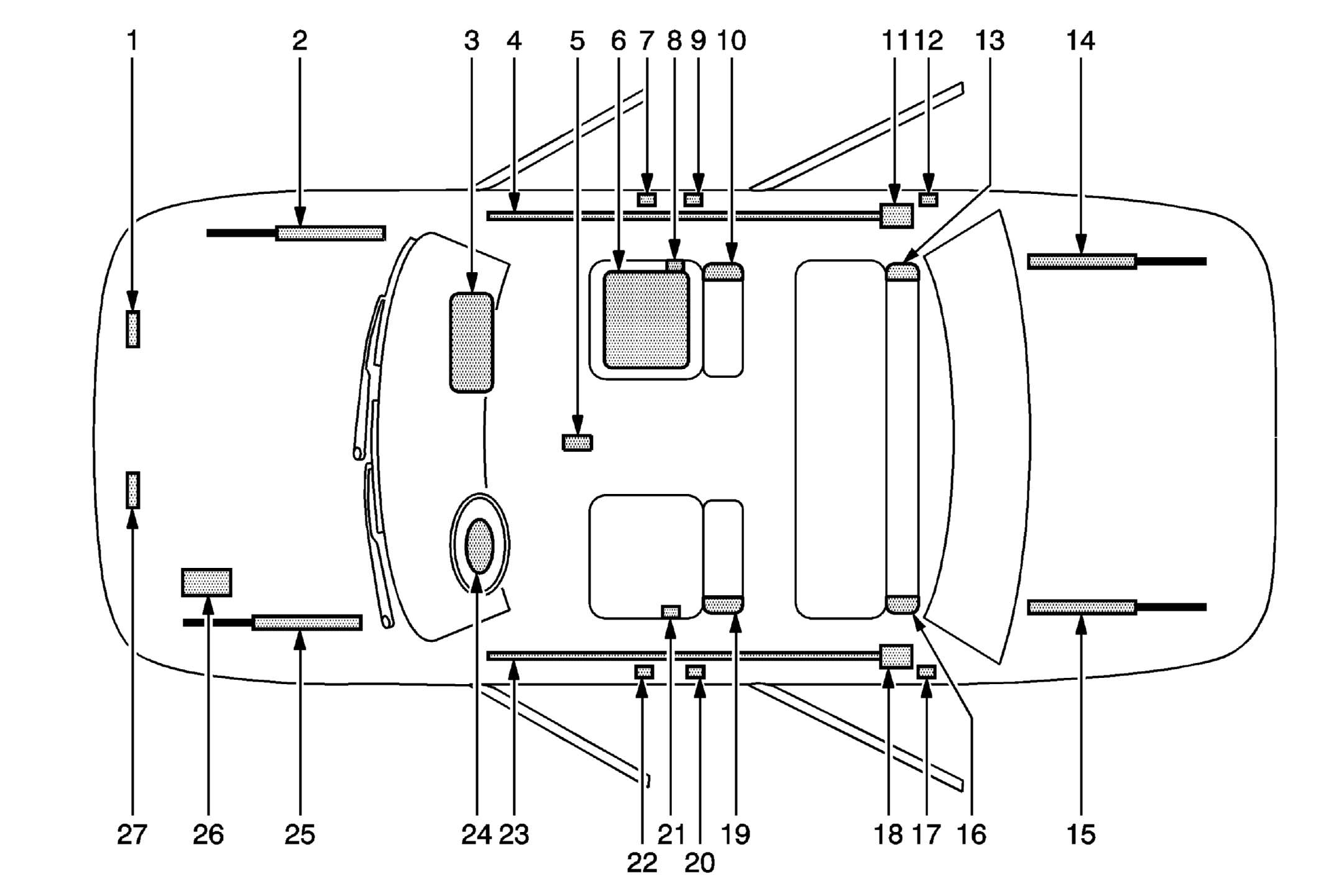

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to SIR Disabling and Enabling .
| Callout | Component Name |
|---|---|
| 1 | Right Front Impact Sensor-Located under the hood at the front right side of the vehicle |
| 2 | Front Hood Assist Rod-A gas shock located under the front hood on the passenger side |
| 3 | Passenger Instrument Panel Air Bag-Located at the top right under the instrument panel |
| 4 | Right Roof Rail Air Bag-Located under the headliner, extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| 5 | Inflatable Restraint Sensing and Diagnostic Module (SDM)-Located onderneath the center console |
| 6 | Passenger Presence System-Located on the passenger front seat underneath the seat bottom trim |
| 7 | Right Front Side Impact Sensor-Located at the B-pillar underneath the door sill |
| 8 | Passenger Seat Belt Anchor Pretensioner-Located on the outboard side of the passenger seat |
| 9 | Passenger Seat Belt Retractor Pretensioner-Located under the trim near the bottom of the center pillar on the passenger side of vehicle |
| 10 | Passenger Seat Side Air Bag-Located on the seat back of the passenger seat |
| 11 | Inflator Module for Right Roof Rail Air Bag-Located behind the headliner above the C-pillar |
| 12 | Right Rear Side Impact Sensor-Located at the C-pillar underneath the door sill |
| 13 | Right Rear Seat Side Air Bag-Located on the seat back bolster of the rear passenger seat (not on the folding part of the seat) |
| 14 | Rear Hood Assist Rod-A gas shock located under the rear truck lid on the passenger side |
| 15 | Rear Hood Assist Rod-A gas shock located under the rear truck lid on the driver side |
| 16 | Left Rear Seat Side Air Bag-Located on the seat back of the rear passenger seat (not on the folding part of the seat) |
| 17 | Left Rear Side Impact Sensor-Located at the C-pillar underneath the door sill |
| 18 | Inflator Module for Left Roof Rail Air Bag-Located behind the headliner above the C-pillar |
| 19 | Driver Seat Side Air Bag-Located on the seat back of the driver seat |
| 20 | Driver Seat Belt Retractor Pretensioner-Located under the trim near the bottom of the center pillar on the driver side of vehicle |
| 21 | Driver Seat Belt Anchor Pretensioner-Located on the outboard side of the driver seat |
| 22 | Left Front Side Impact Sensor-Located at the B-pillar underneath the door sill |
| 23 | Leftt Roof Rail Air Bag-Located under the headliner, extending from the driver front windshield pillar to the driver rear windshield pillar |
| 24 | Driver Steering Wheel Air Bag-Located on the steering wheel |
| 25 | Front Hood Assist Rod-A gas shock located under the front hood on the driver side |
| 26 | Vehicle Battery-Located under the hood on the left side |
| 27 | Left Front Impact Sensor-Located under the hood at the front left side of the vehicle |
