Engine Components (LDK) - Front

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

Items
1: G13 Generator G13 Generator X1 (-LUK)G13 Generator (LUK)G13 Generator X1 (-LUK
2: B68A Knock Sensor 1 B68A Knock Sensor 1 LDK
3: Q40 Turbocharger Bypass Solenoid Valve (LDK)
4: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LFX, LFW)
5: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor LDK
6: Q38 Throttle Body Q38 Throttle Body
7: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump
8: B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor (LAF or LUK)B47B B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor (LFW or LFX)
9: Q17A Fuel Injector 1 Q17A Fuel Injector 1 Q17A Fuel Injector 1 Q17B Fuel Injector 2 (with LFW or LFX)
10: Q17B Fuel Injector 2 Q17B Fuel Injector 2 Q17B Fuel Injector 2 Q17B Fuel Injector 2 (with LFW or LFX)
11: Q17C Fuel Injector 3 Q17C Fuel Injector 3 Q17C Fuel Injector 3 Q17C Fuel Injector 3 (with LFW or LFX)
12: Q17D Fuel Injector 4 Q17D Fuel Injector 4 Q17D Fuel Injector 4 Q17D Fuel Injector 4 (with LFW or LFX)
13: B68B Knock Sensor 2 B68B Knock Sensor 2 LDK B68B Knock Sensor 2 (LFW or LFX)
14: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch (LAF, LDK, or LUK)B37 Engine Oil Pressure Switch (LFW or LFX)
15: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor
16: M64 Starter Motor M64 Starter Motor X1 M64 Starter Motor X2 LUK M64 Starter Motor X2
17: B35 Engine Oil Level Switch B35 Engine Oil Level Switch LDK
18: B111B Turbocharger Boost/Intake Air Temperature Sensor (LDK) B65 Intake Manifold Pressure and Air Temperature Sensor LDK
19: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve

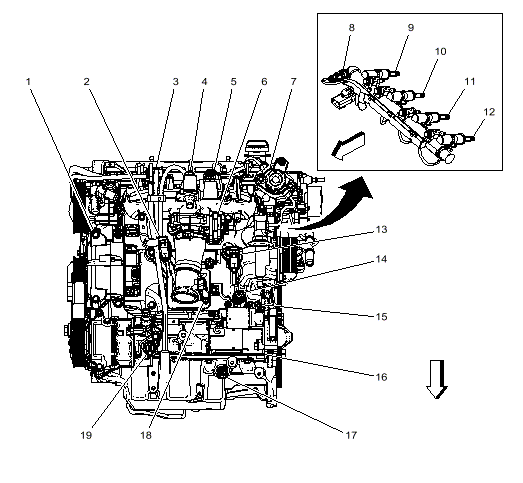

Fig 1: Engine Components (LDK) - Front

Courtesy of GENERAL MOTORS COMPANY
