Front and Rear Object Alarm Module Bracket Replacement

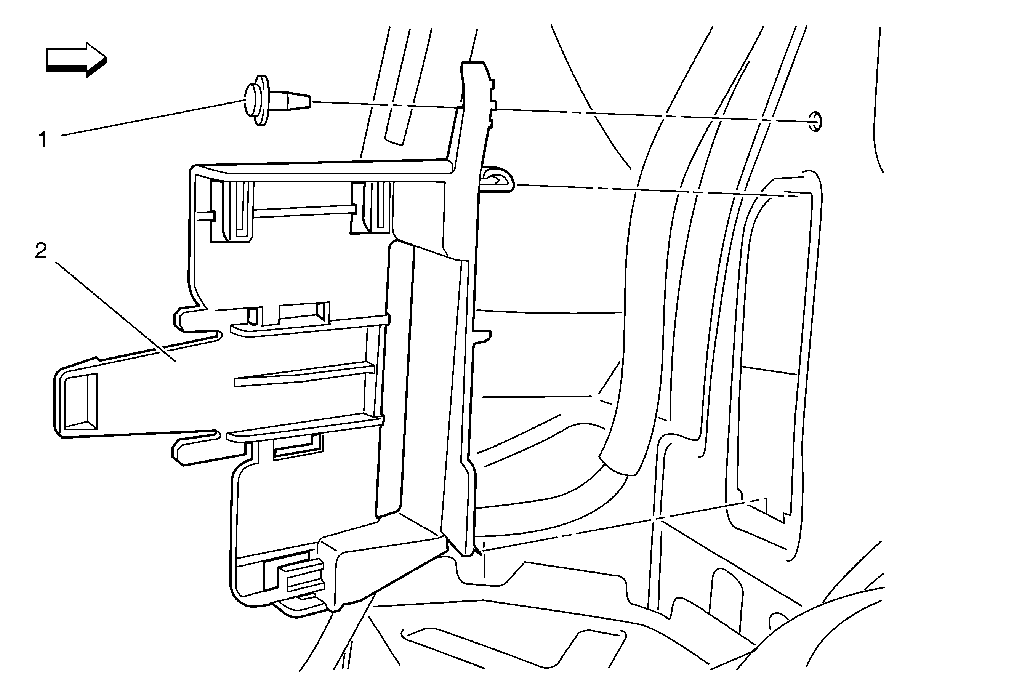

Fig 1: Front & Rear Object Alarm Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the front and rear object alarm module. Refer to Front and Rear Object Alarm Module Replacement .
1	Front and Rear Object Alarm Module Bracket Bolt CAUTION: Refer to Fastener Caution .
2	Front and Rear Object Alarm Module Bracket
