Power Windows System Components
The power window system consists of the following components:
- Driver window switch
- Passenger window switch
- Left rear window switch
- Right rear window switch
- Window motors in each of the doors
- 30A Fuse
- 5A Fuse
- Body control module (BCM)

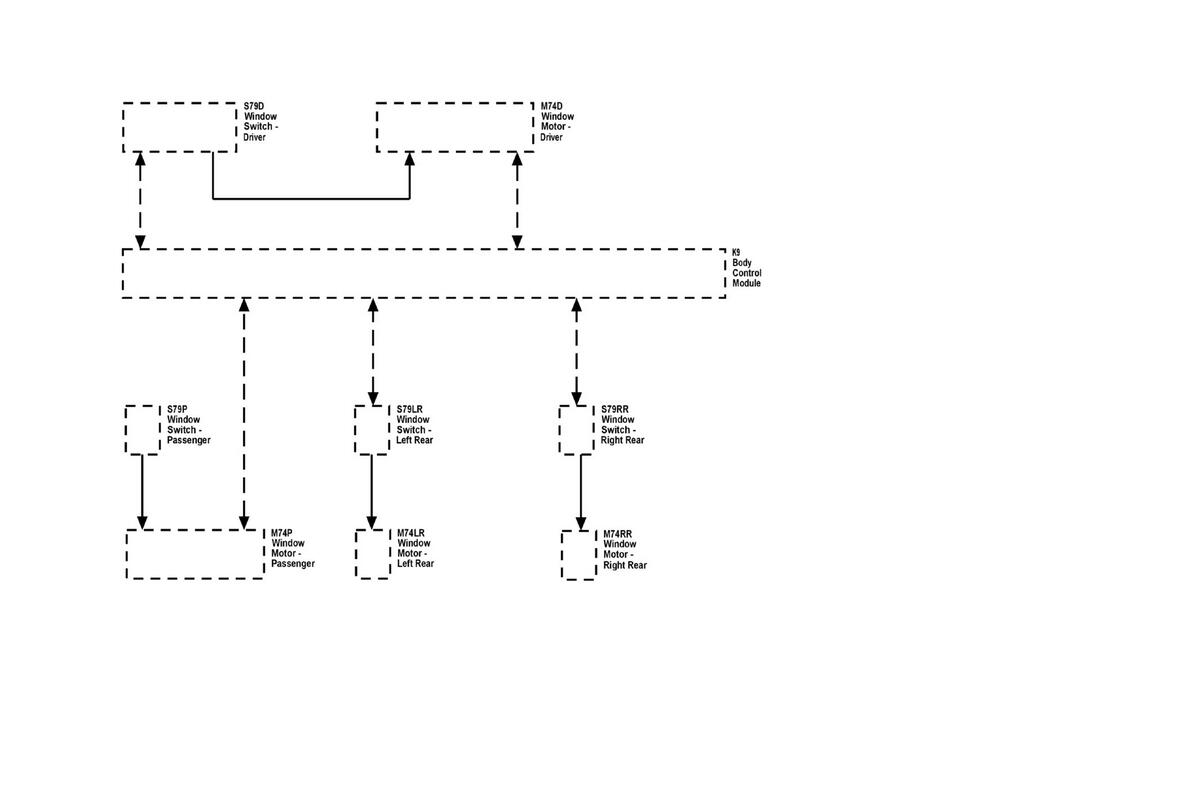

| Callout | Component Name |
|---|---|
| S79D | S79D Window Switch - Driver |
| M74D | M74D Window Motor - Driver |
| K9 | K9 Body Control Module |
| S79RR | S79RR Window Switch - Right Rear |
| S79LR | S79LR Window Switch - Left Rear |
| S79P | S79P Window Switch - Passenger |
| M74P | M74P Window Motor - Passenger |
| M74LR | M74LR Window Motor - Left Rear |
| M74RR | M74RR Window Motor - Right Rear |
