Radio Antenna Module Replacement
WARNING: This page is about a different car, the 2015 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

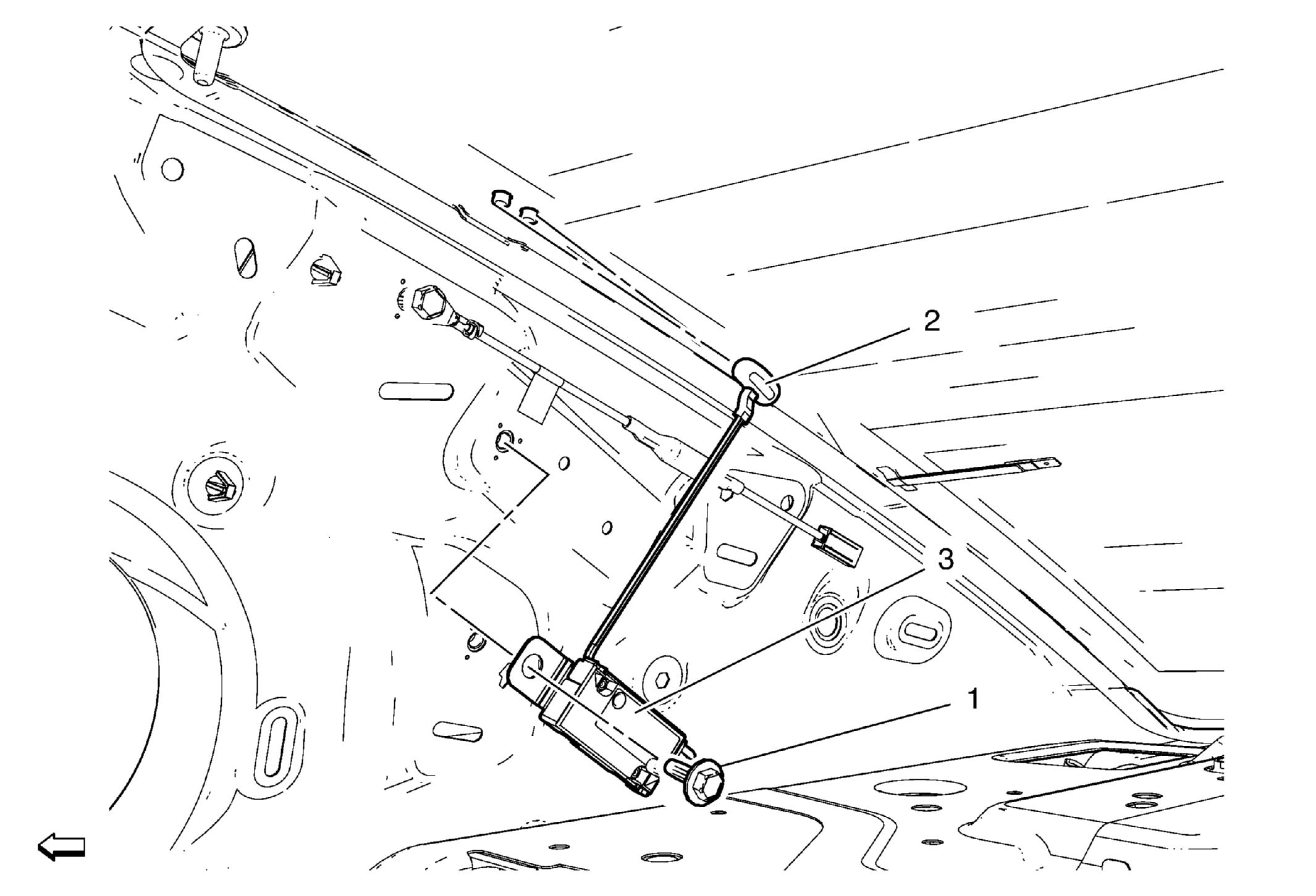

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the body lock pillar trim panel. Refer to Body Lock Pillar Trim Panel Replacement (without Roof Side Rail Airbag)Body Lock Pillar Trim Panel Replacement (with Roof Side Rail Airbag) . |
|
| 1 | Radio Antenna Module Bolt
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |
| 2 | Radio Antenna Connector Procedure Use a flat-bladed plastic trim tool to remove. |
| 3 | Radio Antenna Module |
