Liftgate Angle Sensor Replacement

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

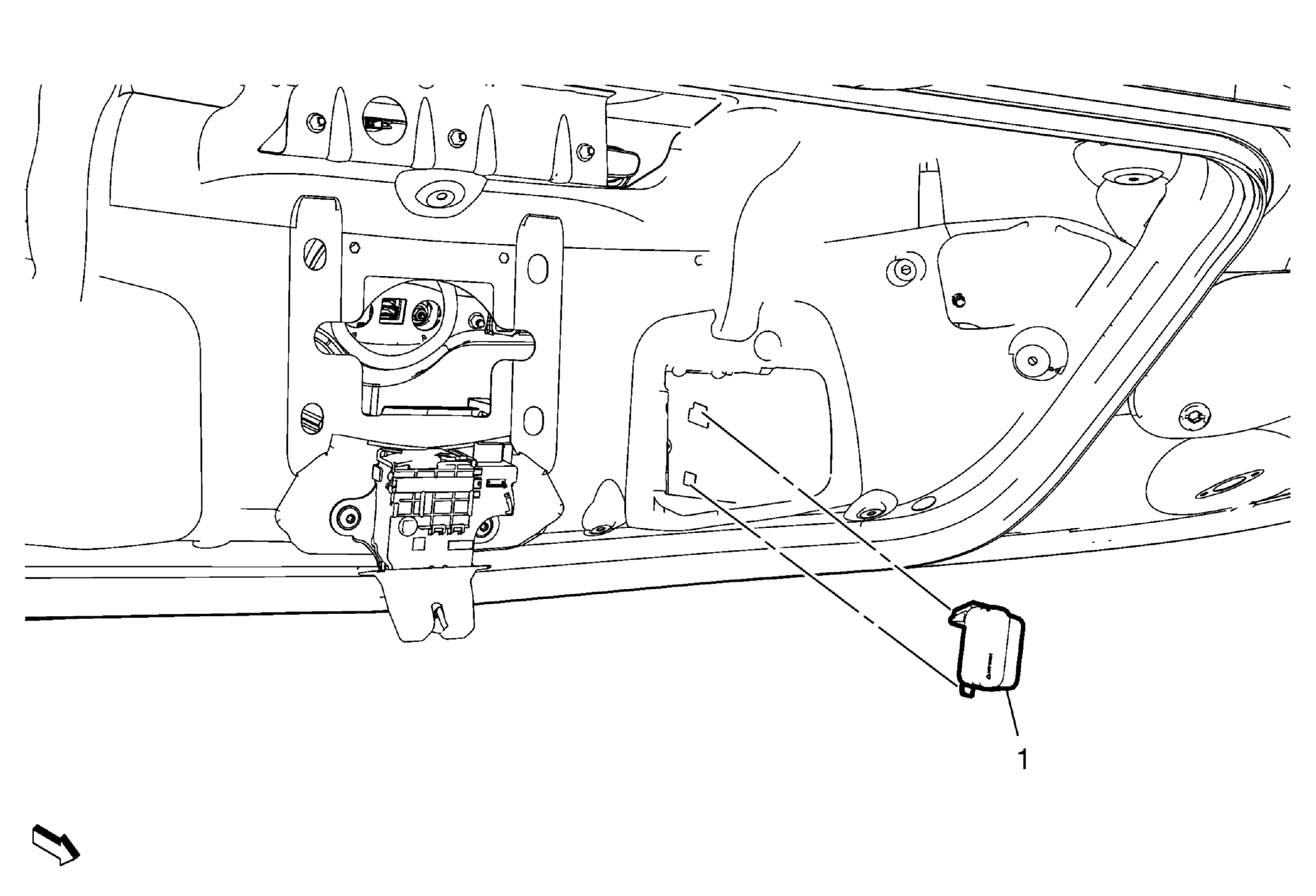

1	Liftgate Angle Sensor Procedure Unlock the 2 retaining tabs. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Liftgate Angle Sensor

Procedure
