Front Side Door Window and Multifunction Switch Replacement

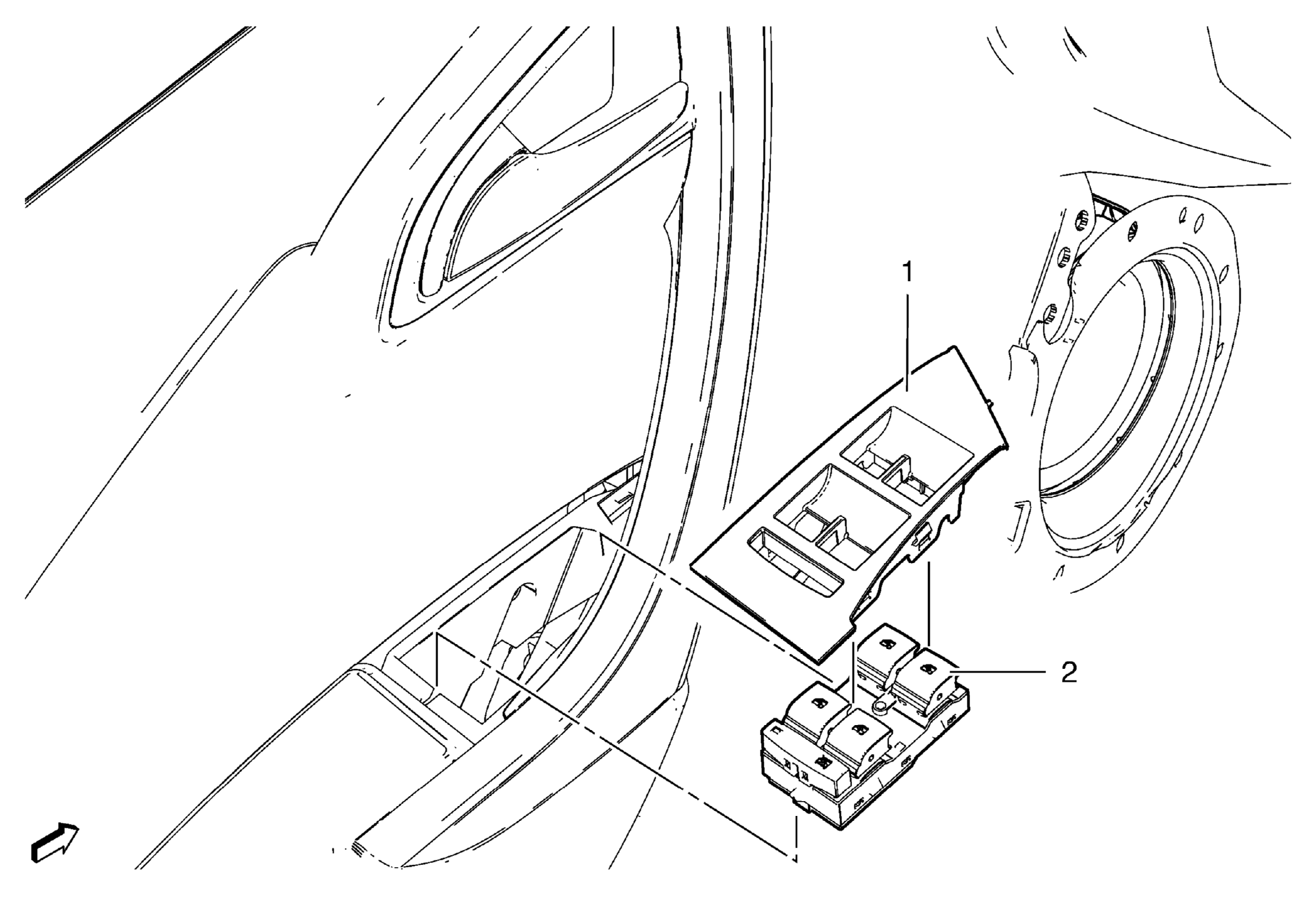

GM2189749
Callout Component Name
1 Front Side Door Window Switch Opening Cover
Procedure
Unclip front side door window switch opening cover.
2 Front Side Door Window and Multifunction Switch

Procedure

  1. Unclip the front side door window and multifunction switch.
  2. Disconnect the electrical connector.
