Front of the Vehicle Components

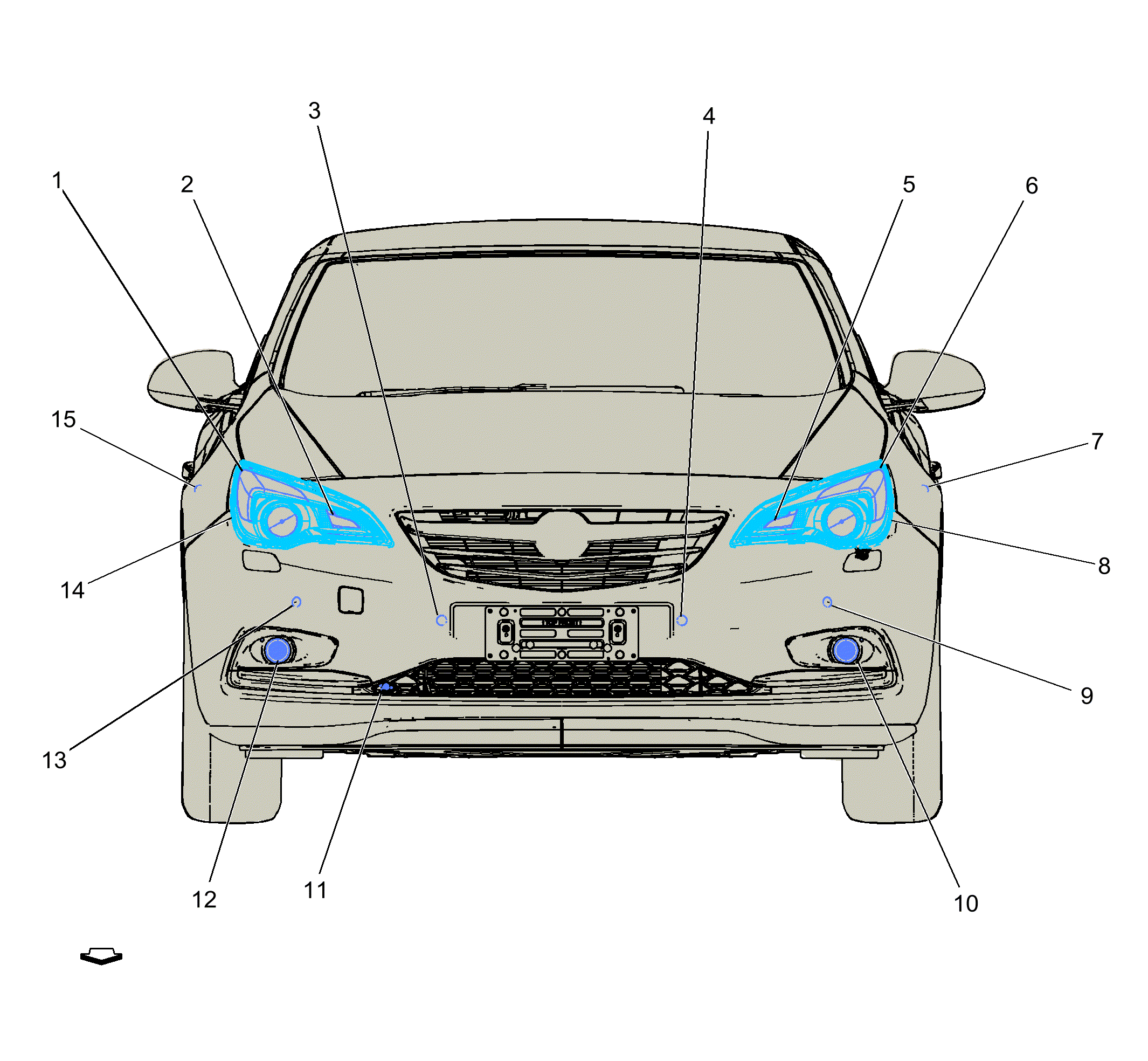

GM4455263Courtesy of GENERAL MOTORS COMPANY
Front of the Vehicle Components

Items
1. E4AD Park/Daytime Running Lamp - Right
2. E4RF Turn Signal Lamp - Right Front
3. B306B Parking Assist Sensor - Front Left Middle (UDP) B306B Parking Assist Sensor - Front Left Middle
4. B306C Parking Assist Sensor - Front Right Middle (UDP) B306C Parking Assist Sensor - Front Right Middle
5. E4LF Turn Signal Lamp - Left Front
6. E4AC Park/Daytime Running Lamp - Left
7. E4Y Turn Signal Repeater Lamp - Left E4Y Turn Signal Repeater Lamp - Left
8. E13LA Headlamp Assembly - Left
9. B306A Parking Assist Sensor - Front Left Outer (UDP) B306A Parking Assist Sensor - Front Left Outer
10. E29LF Fog Lamp - Left Front E29LF Fog Lamp - Left Front
11. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor
12. E29RF Fog Lamp - Right Front E29RF Fog Lamp - Right Front
13. B306B Parking Assist Sensor - Front Left Middle (UDP) B306B Parking Assist Sensor - Front Left Middle
14. E13RA Headlamp Assembly - Right
15. E4Z Turn Signal Repeater Lamp - Right E4Z Turn Signal Repeater Lamp - Right
