Keyless Start (Chevrolet with BTM)

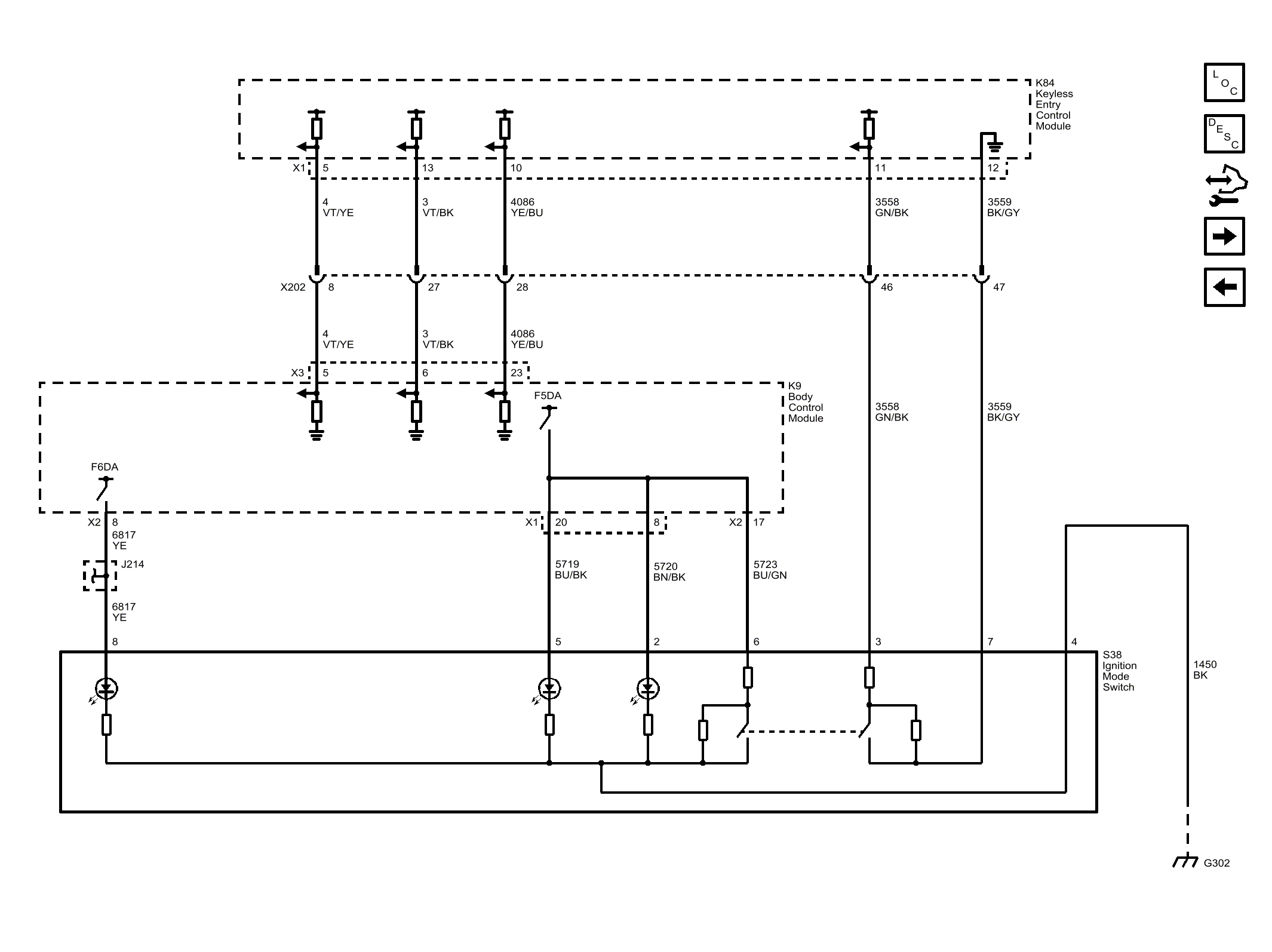

Fig 1: Keyless Start (Chevrolet with BTM)
Courtesy of GENERAL MOTORS COMPANY
