Timing Chain and Components

WARNING: This page is about a different variant/trim than selected.

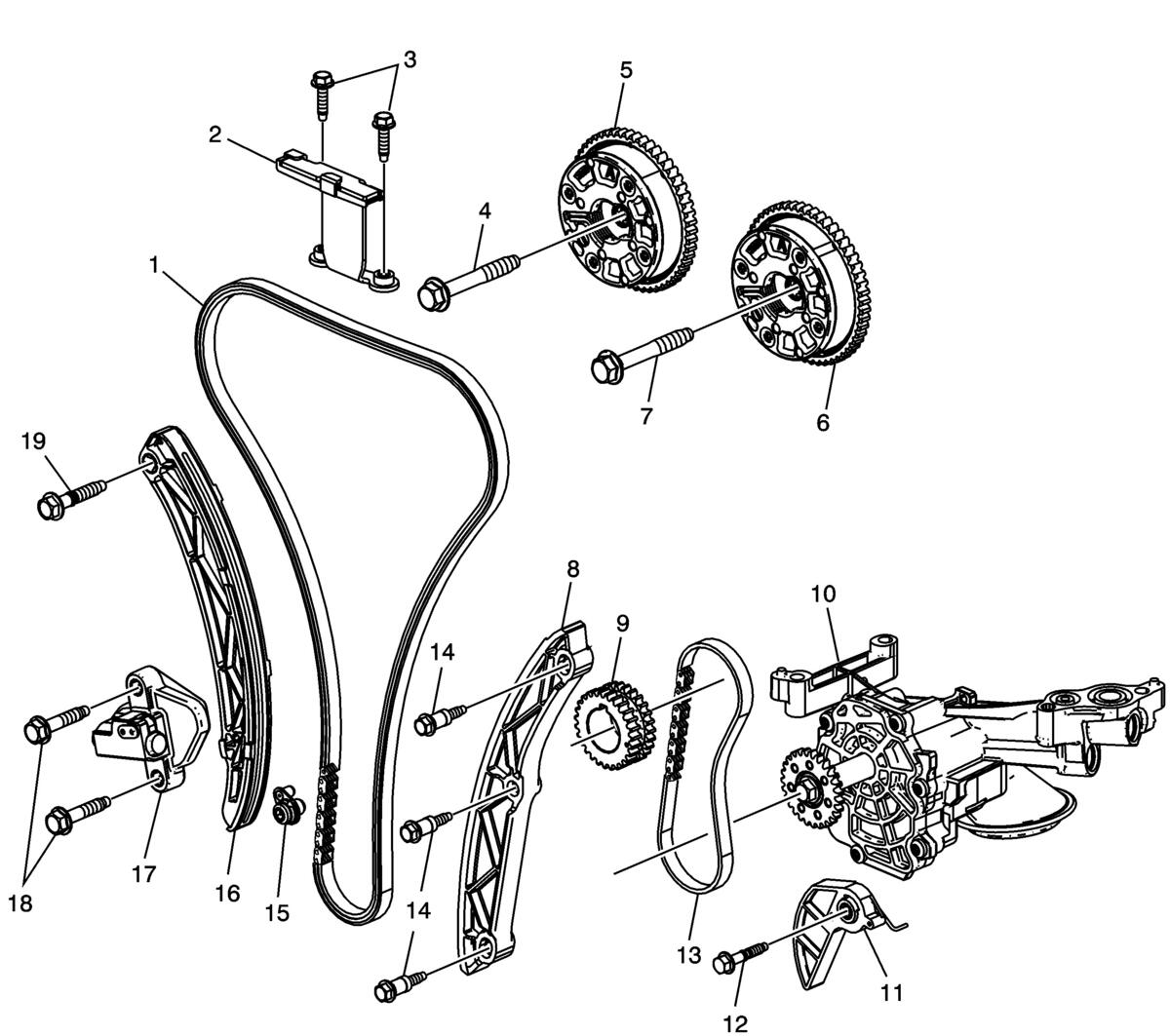

Fig 1: Timing Chain and Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Timing Chain
2	Timing Chain Guide - to Cylinder Head
3	Timing Chain Guide Bolt
4	Camshaft Position Actuator Bolt
5	Camshaft Position Actuator Assembly - Intake
6	Camshaft Position Actuator Assembly - Exhaust
7	Camshaft Position Actuator Bolt
8	Timing Chain Guide - Exhaust Side
9	Crankshaft Sprocket
10	Oil Pump Assembly
11	Oil Pump Drive Chain Tensioner Assembly
12	Oil Pump Drive Chain Tensioner Bolt
13	Oil Pump Drive Chain
14	Timing Chain Guide Bolt (Qty: 3)
15	Timing Chain Oil Nozzle
16	Timing Chain Tensioner Shoe Assembly
17	Timing Chain Tensioner Assembly
18	Timing Chain Tensioner Bolt
19	Timing Chain Tensioner Shoe Bolt
