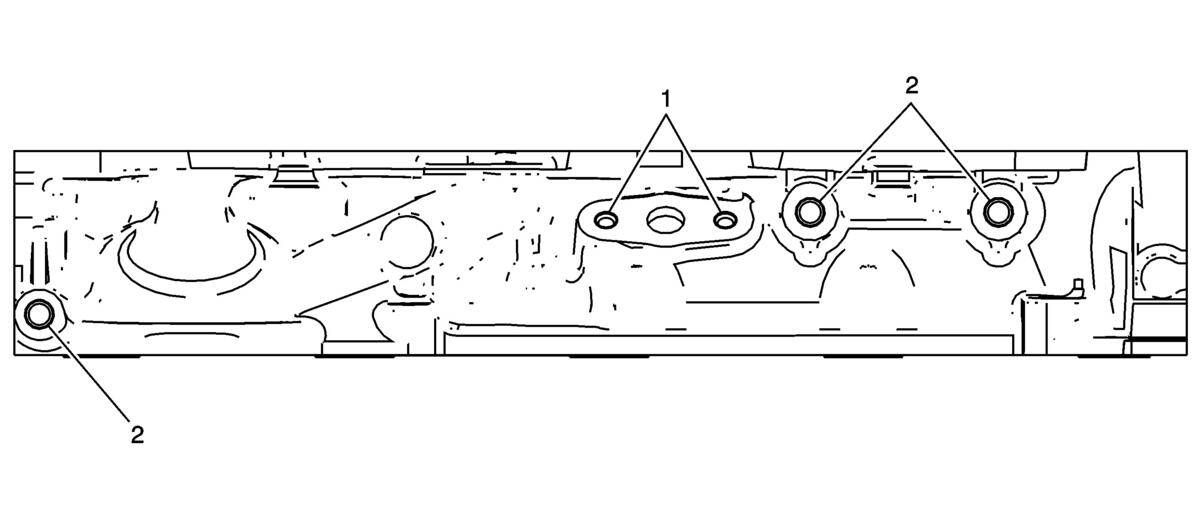

Lower Crankcase - Right Side View
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY Lower Crankcase - Right Side View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN 42385-400 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M6x1.0 |
63 |
201 |
202 |
203 |
204 |
22.0 |
0.865 |
22.0 |
0.865 |
| 2 |
M8x1.25 |
61 |
206 |
207 |
208 |
209 |
29.0 |
1.142 |
29.0 |
1.142 |
