Communication Interface Module Bracket Replacement (Buick)

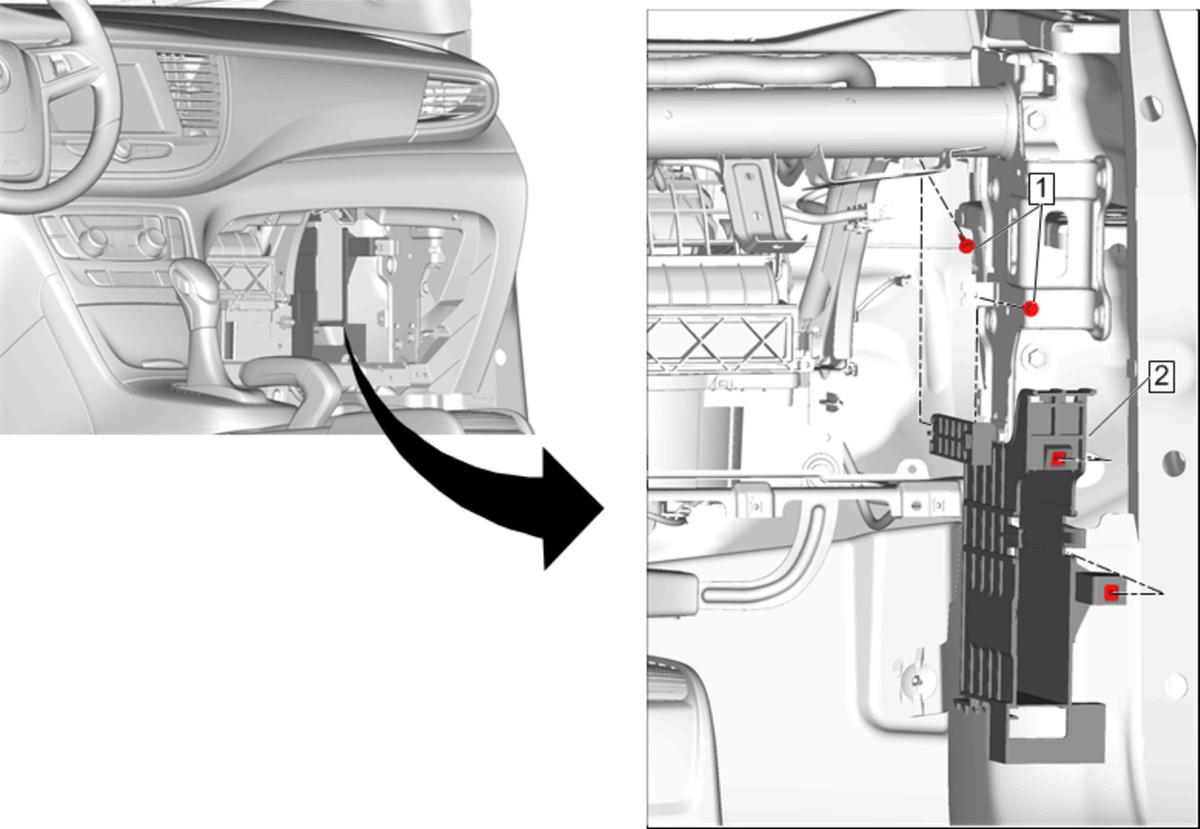

Fig 1: Communication Interface Module Bracket (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Serial Data Gateway Bracket. Refer to Serial Data Gateway Bracket Replacement (Buick)
1	Communication Interface Module Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Communication Interface Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary. The top of the bracket has 2 locking tabs on an arm that goes above the instrument panel tie bar, lift the arm up and out of the locking holes to release the bracket.

Callout

Component Name

Preliminary Procedure
Remove Serial Data Gateway Bracket. Refer to Serial Data Gateway Bracket Replacement (Buick)

Communication Interface Module Bracket Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Communication Interface Module Bracket

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
The top of the bracket has 2 locking tabs on an arm that goes above the instrument panel tie bar, lift the arm up and out of the locking holes to release the bracket.
