Forward Collision Alert Display Replacement (Buick)

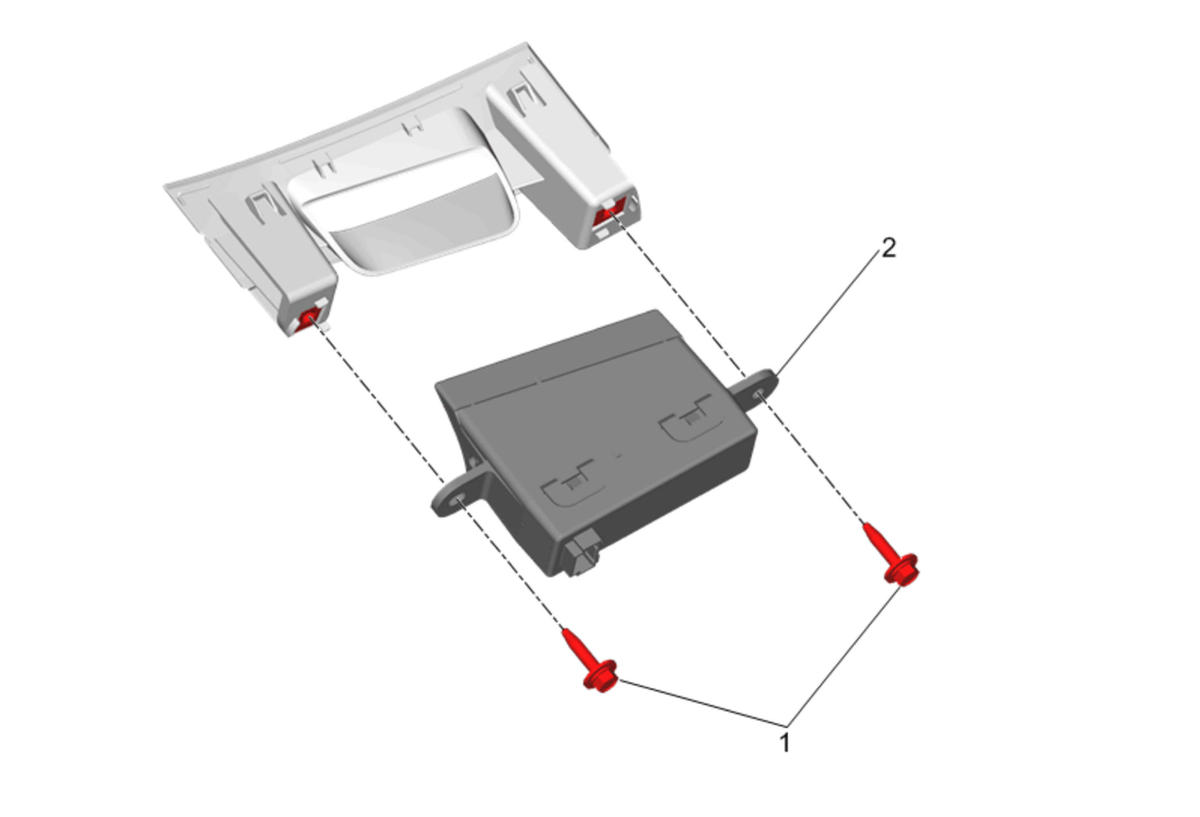

Fig 1: Forward Collision Alert Display (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Forward Collision Alert Display Bezel. Refer to Forward Collision Alert Display Bezel Replacement (With UEU, Buick)Forward Collision Alert Display Bezel Replacement (Without UEU, Buick)
1	Forward Collision Alert Display Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Forward Collision Alert Display
