Telematics Communication Interface Control Module

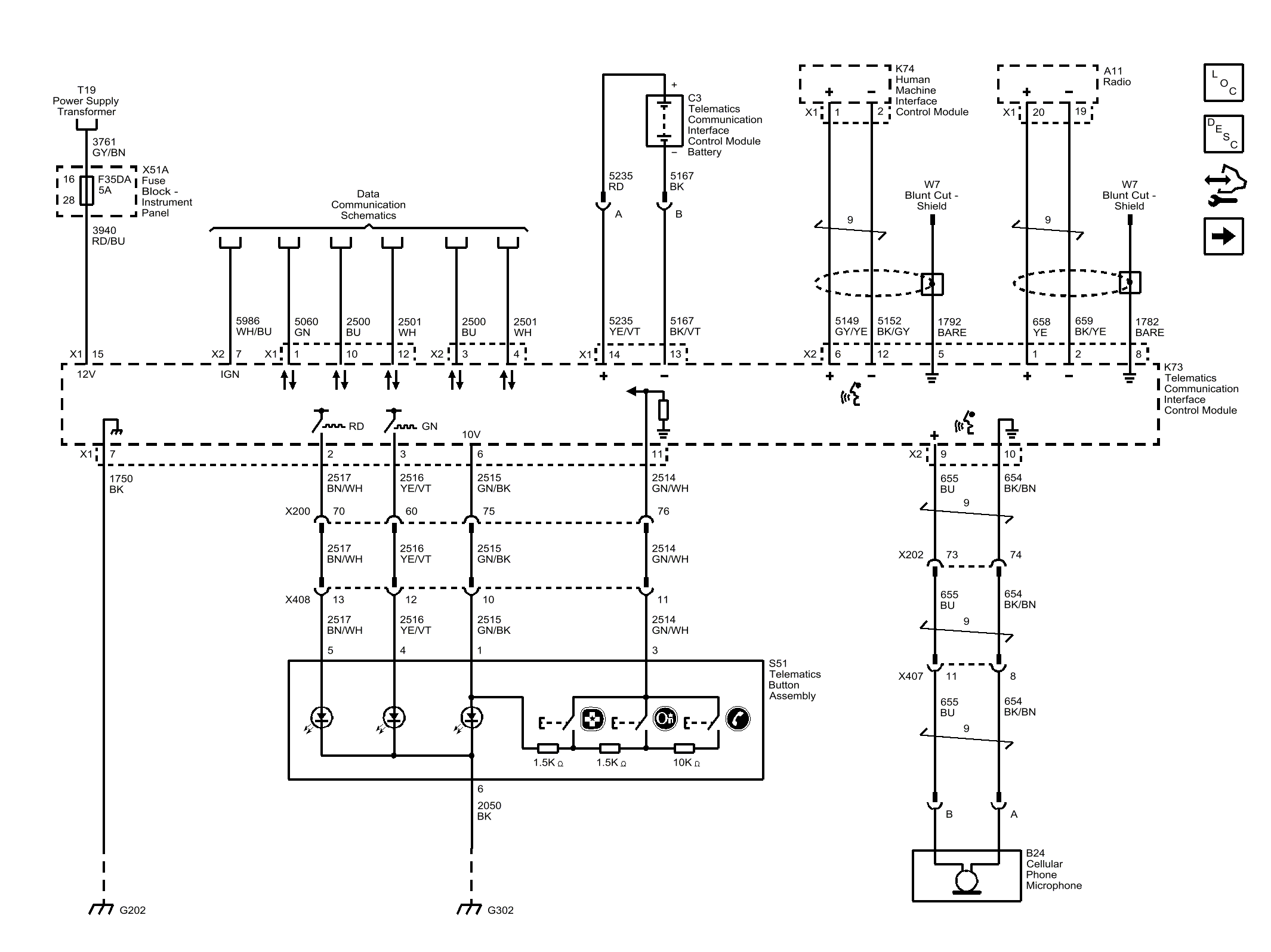

Fig 1: Telematics Communication Interface Control Module
GM4493698Courtesy of GENERAL MOTORS COMPANY
