Battery Negative Cable Replacement (LTG)

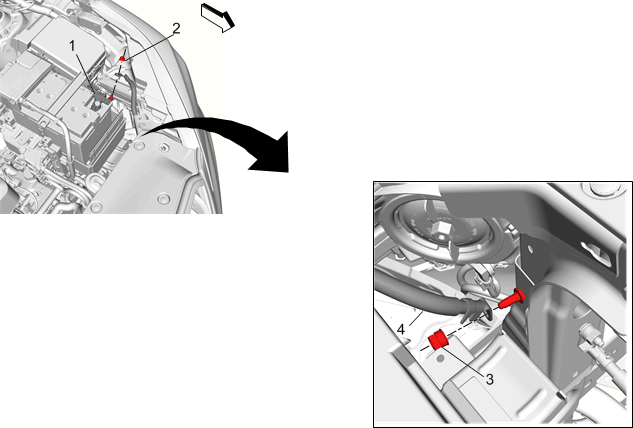

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Battery Sensor |
| 2 | Battery Negative Cable Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (7 lb ft) |
| 3 | Battery Negative Cable Ground Fastener Tighten 22 N.m (16 lb ft) |
| 4 | Battery Negative Cable |
