Battery Tray Replacement

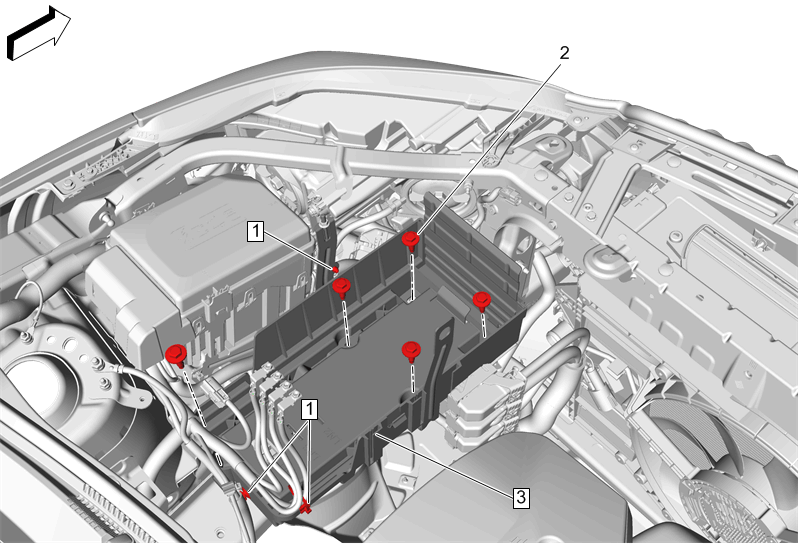

Fig 1: Battery Tray

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the battery. Refer to Battery Replacement . Remove the engine control module bracket. Refer to Engine Control Module Bracket Replacement (LTG)Engine Control Module Bracket Replacement (LCV) .
1	Battery Tray Fasteners (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Battery Tray

Callout

Component Name

Preliminary Procedure

Battery Tray Fasteners (Qty: 5)

CAUTION:

Tighten
22 N.m (16 lb ft)

Battery Tray
