Installation Procedure

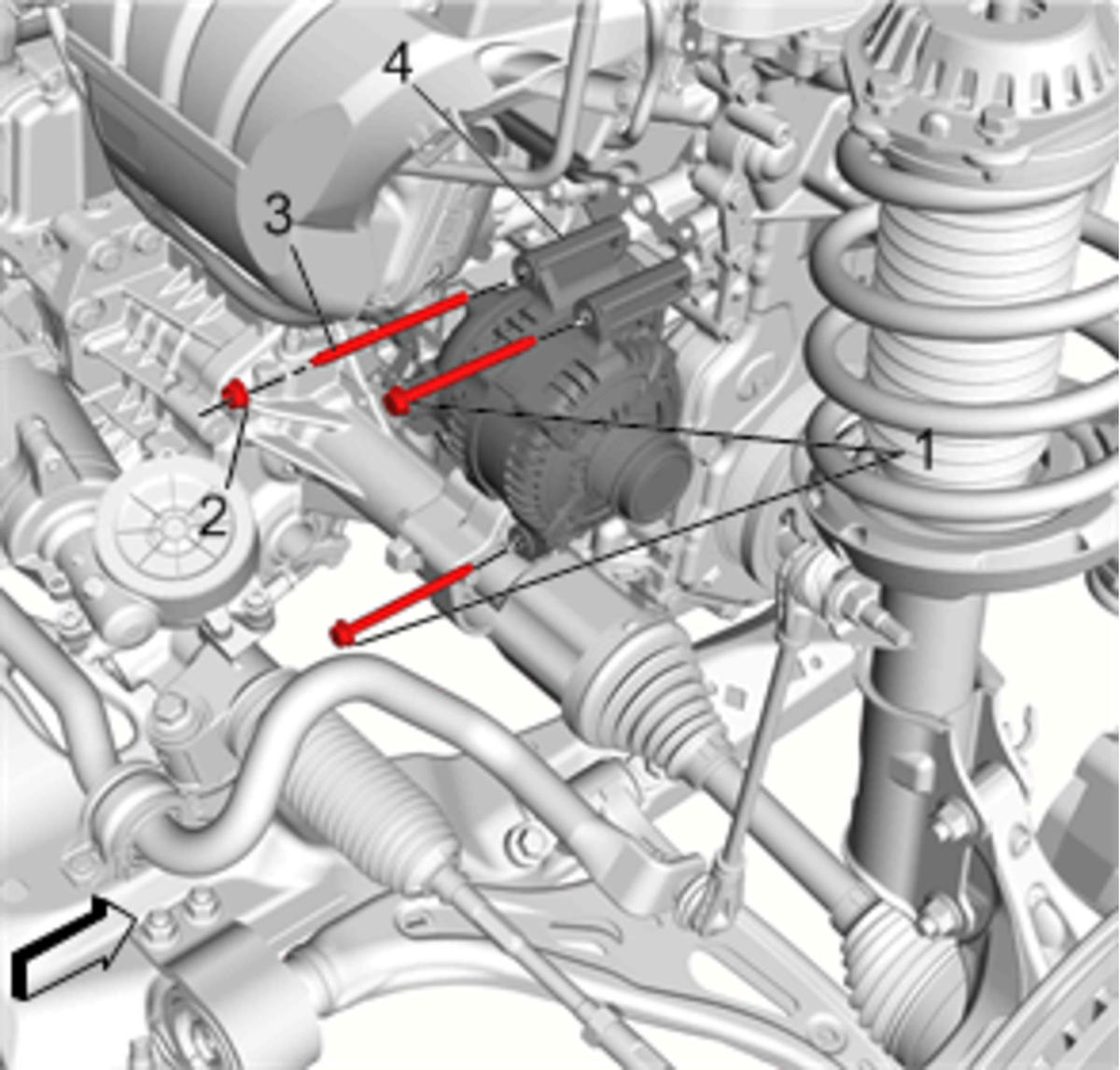

    Fig 1: Generator
    GM3908526Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator.(4)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install Generator Mounting Stud (3) and tighten 9 N.m (80 lb in)
  3. Install Generator Bolt (1) and tighten 22 N.m (16 lb ft)
  4. Install Generator Nut (2) and tighten 22 N.m (16 lb ft)
  5. Raise and support the vehicle. Lifting and Jacking the Vehicle

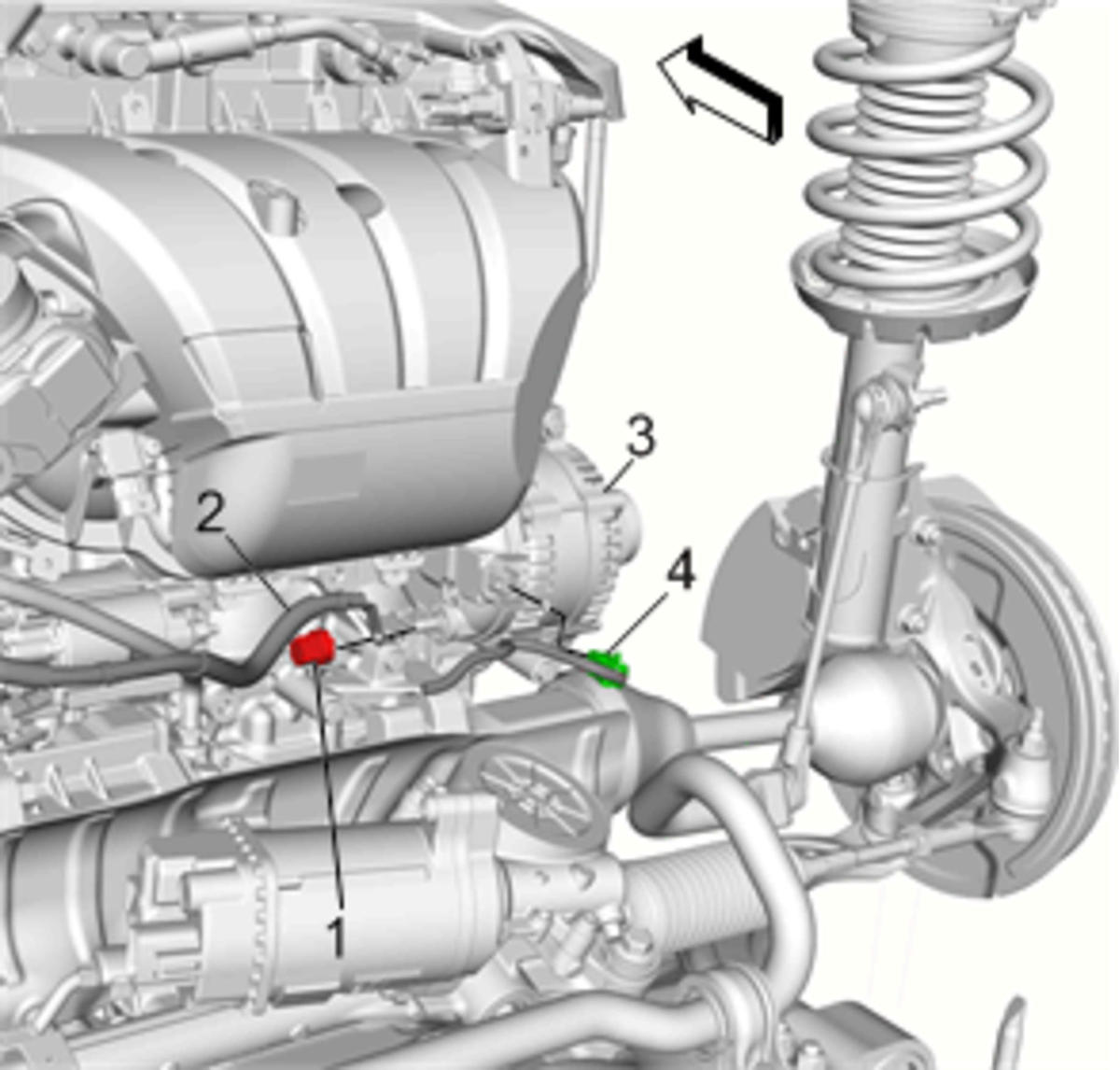

    6. Fig 2: Battery Positive Cable
    GM3908524Courtesy of GENERAL MOTORS COMPANY
  6. Install Battery Positive Cable (2)
  7. Install Battery Positive Cable Nut (1) and tighten 15 N.m (11 lb ft)
  8. Connect Electrical Connector (4)

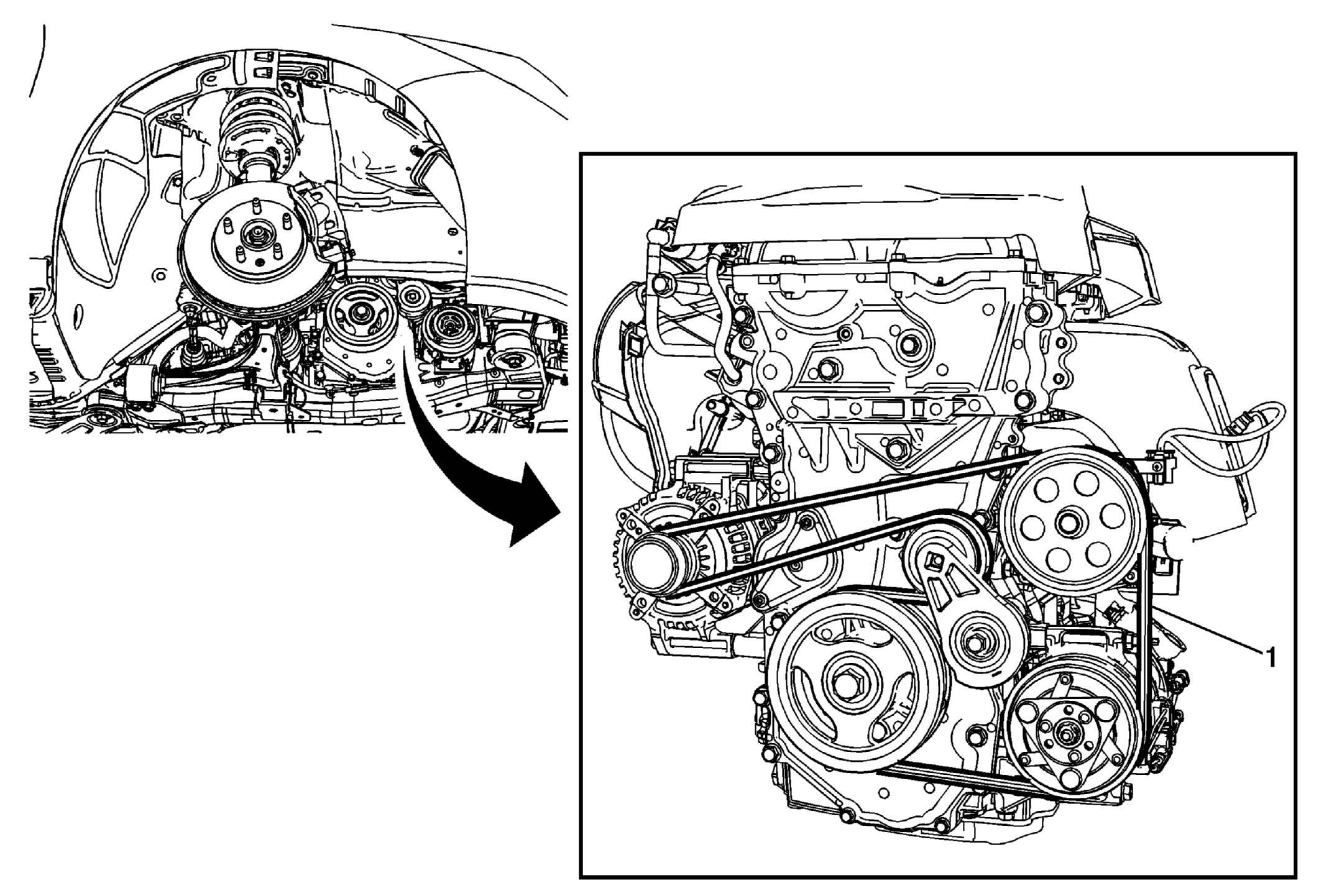

    9. Fig 3: Drive Belt
    GM2812339Courtesy of GENERAL MOTORS COMPANY
  9. Install Drive Belt (1)Drive Belt Replacement (LCV)

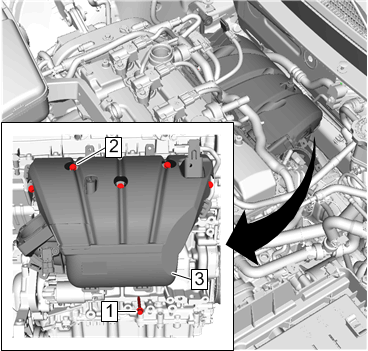

    10. Fig 4: Intake Manifold
    GM4528173Courtesy of GENERAL MOTORS COMPANY
  10. Intake Manifold (3)Intake Manifold Replacement (LCV)

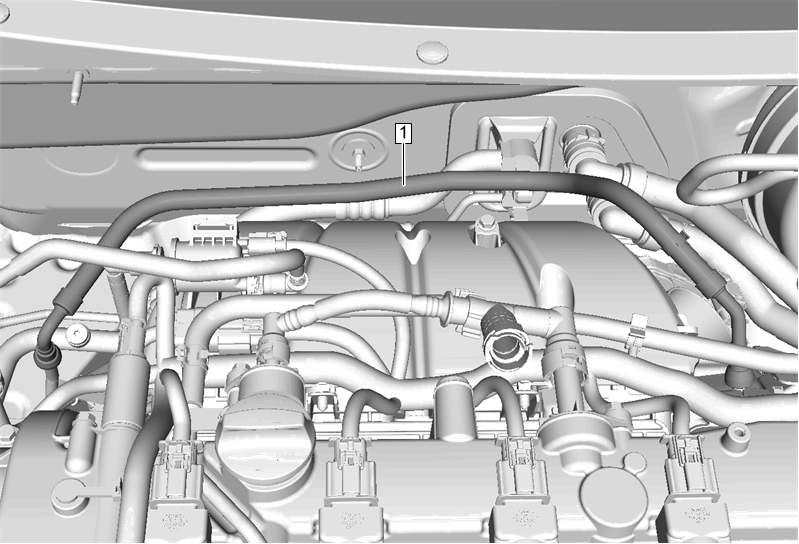

    11. Fig 5: Fuel Feed Pipe
    GM4520795Courtesy of GENERAL MOTORS COMPANY
  11. Install Fuel Feed Pipe (1)Fuel Feed Pipe Replacement (Engine LCV)

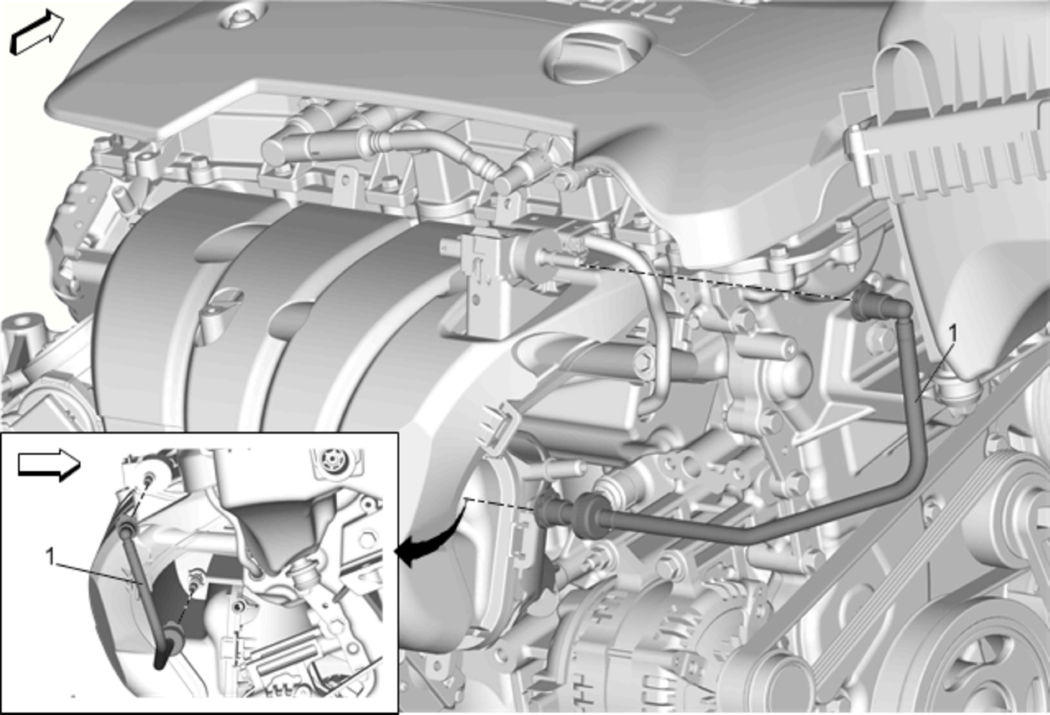

    12. Fig 6: Evaporative Emission Canister Purge Tube
    GM3829325Courtesy of GENERAL MOTORS COMPANY
  12. Install Evaporative Emission Canister Purge Tube (1)Evaporative Emission Canister Purge Tube Replacement (LCV)

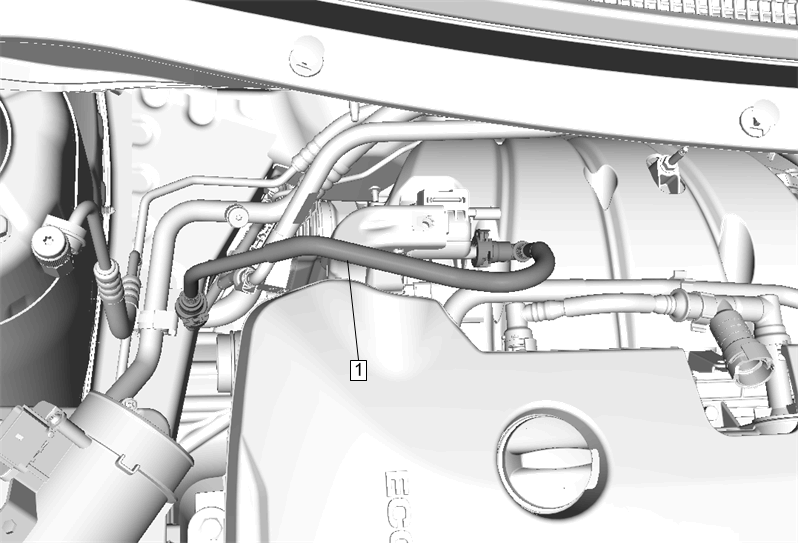

    13. Fig 7: Evaporative Emission Canister Purge Solenoid Valve Hose
    GM4530821Courtesy of GENERAL MOTORS COMPANY
  13. Install Evaporative Emission Canister Purge Solenoid Valve Hose (1)Evaporative Emission Canister Purge Solenoid Valve Hose Replacement (LCV)
  14. Lower the vehicle.

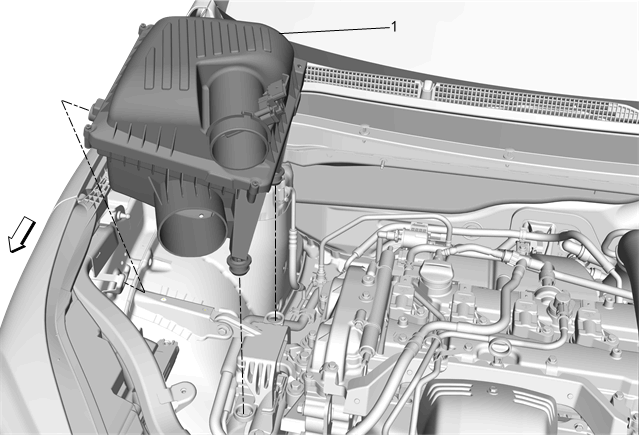

    15. Fig 8: Air Cleaner Assembly
    GM3924601Courtesy of GENERAL MOTORS COMPANY
  15. Install Air Cleaner Assembly (1)Air Cleaner Assembly Replacement (LCV)
  16. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection .
