Installation Procedure

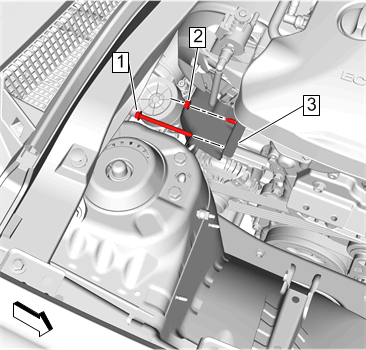

    Fig 1: Generator Bolt And Nut
    GM4573848Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator Splash Shield (3)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Generator Nut (1) and tighten 22 N.m (16 lb ft)
  3. Install Generator Bolt (1) and tighten 22 N.m (16 lb ft)
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle

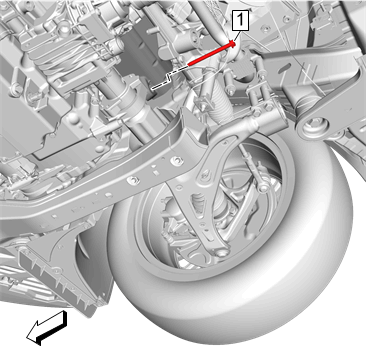

    5. Fig 2: Generator Bolt
    GM4573844Courtesy of GENERAL MOTORS COMPANY
  5. Install Generator Bolt (1) and tighten 22 N.m (16 lb ft)
  6. Lower the vehicle.

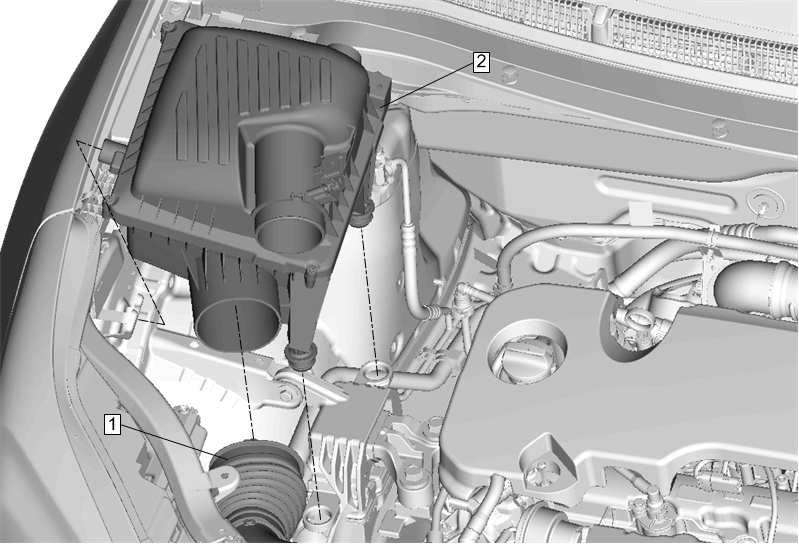

    7. Fig 3: Air Cleaner Assembly
    GM4530709Courtesy of GENERAL MOTORS COMPANY
  7. Install Air Cleaner Assembly (2)Air Cleaner Assembly Replacement (LTG)Air Cleaner Assembly Replacement (LCV)
  8. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
