Installation Procedure

NOTE:

Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative

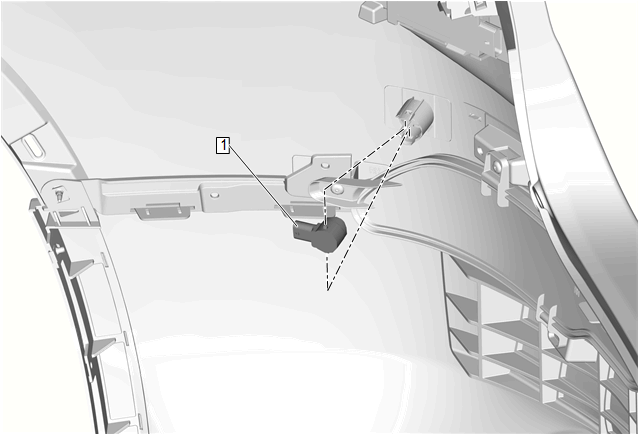

    Fig 1: Advance Parking Assist Alarm Sensor
    GM3905140Courtesy of GENERAL MOTORS COMPANY
  1. Insert the advance parking assist alarm sensor (1) into the housing.
  2. Connect the data link connector.
  3. Install Front Bumper Fascia. Refer to Front Bumper Fascia Replacement
  4. Perform the necessary programming and setup procedure: Control Module References
