Radiator Support Components

Radiator Support Components

Items
1. B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
2. B55 Hood Ajar Switch B55 Engine Hood Switch
3. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right

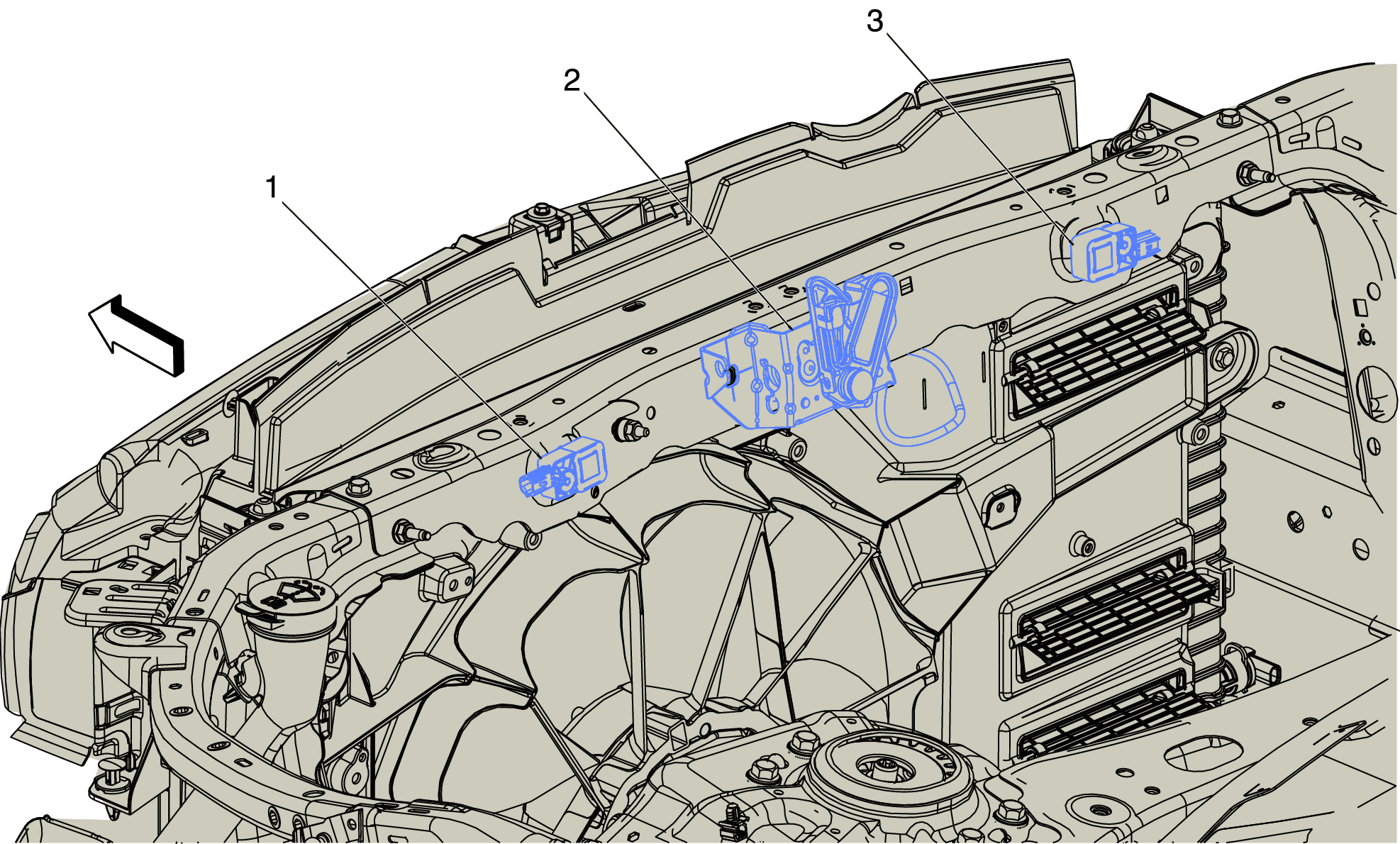

Fig 1: Radiator Support Components
GM4318986Courtesy of GENERAL MOTORS COMPANY
